Schneider Electric NSYS3X6625H S3X 316L 600X600X250
Schneider Electric
$1,415.18
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYS3X6625H S3X 316L 600X600X250
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

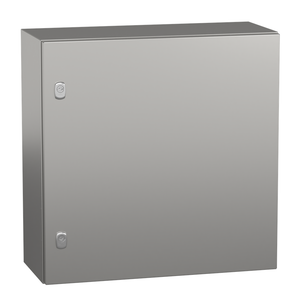

SPACIAL S3X Scotch Brite compact enclosure. H is600xW is600xD is250 mm. For corrosive/specific hygiene. No mounting plate included. 3 mm double-bar lock. Wall mounting installation. Gutter-shaped front rail, single piece body. Stainless steel 316L body, Scotch-Brite brushed surface. Protection IP 66, IK10, Grey RAL 7035. Certifications is CAN/CSA 22, UL 508 type A.
- Ik Degree Of Protection:
- IK10 IEC 62262
- Environmental Characteristic:
- specific hygiene || corrosive
- Accessibility For Operation:
- front
- Product Certifications:
- CAN/CSA 22 || UL 508 type A
- Mercury Free:
- Yes
- Body Type:
- single piece body, cross-shaped structure || gutter shaped front rail
- Type Of Gland Plate:
- without gland plate
- Ip Degree Of Protection:
- IP66 IEC 60529
- Number Of Doors:
- front face 1
- Surface Finish:
- body and door Scotch-Brite® brushed || lock chromium plated
- Environmental Disclosure:
- ENVPEP2109018EN
- Standards:
- IEC 62208
- Rohs Exemption Information:
- Yes
- Device Application:
- multi-purpose
- Enclosure Nominal Depth:
- 250 mm
- Product Or Component Type:
- compact enclosure
- Removable Parts:
- door by hinges
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- Installation Accessory Type:
- wall-mounting
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range:
- Spacial
- Mounting Plate Description:
- without mounting plate
- Net Weight:
- 14 kg
- Enclosure Nominal Height:
- 600 mm
- Product Name:
- Spacial S3X
- Door Type:
- Solid
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Sustainable Offer Status:
- Green Premium product
- Enclosure Nominal Width:
- 600 mm
- Lock Type:
- 2 points lock, 3 mm double-bar
- Device Composition:
- 1 body || 1 door || 2 lock door || 2 perforated vertical profile drilled door
- Door Opening Side:
- reversible 120 °)
- Material:
- lock zamak || hinge stainless steel || body and door stainless steel 316L
- Catalog:
- View
- Datasheet:
- View
