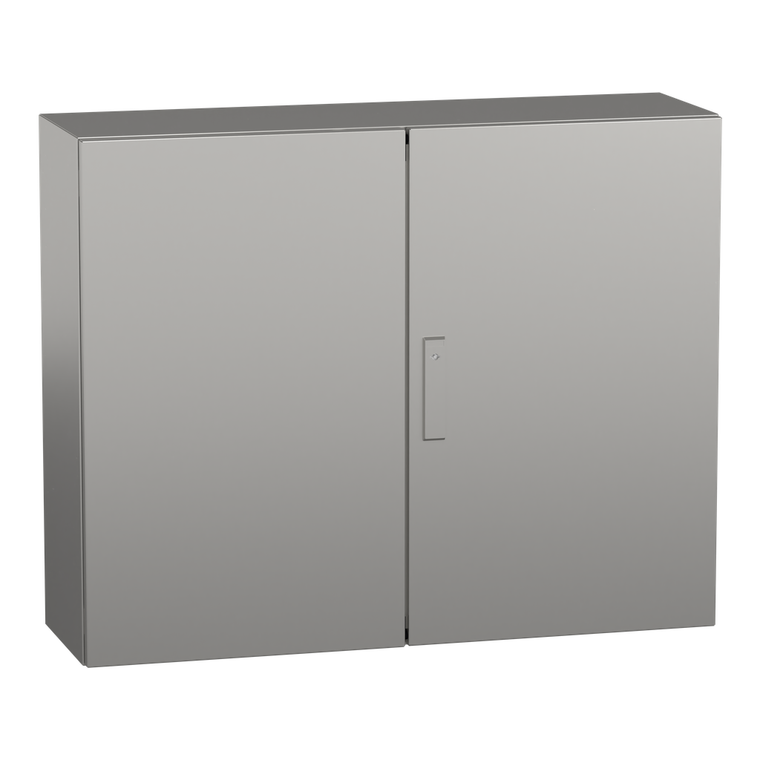

Schneider Electric NSYS3X801030 S3X 304L 800X1000X300

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3X801030 S3X 304L 800X1000X300

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3X801030

UPC:

3606480731754

MPN:

Condition:

New

Enclosure Nominal Height:

800 mm

Device Composition:

1 body || 1 lock door || 2 perforated vertical profile drilled door || 2 doors

Removable Parts:

door by hinges

Product Name:

Spacial S3X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

38 kg

Installation Accessory Type:

wall-mounting

Rohs Exemption Information:

Yes

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Material:

body and door stainless steel 304L || lock zamak || hinge stainless steel

Ik Degree Of Protection:

IK10 IEC 62262

Ip Degree Of Protection:

IP55 IEC 60529

Sustainable Offer Status:

Green Premium product

Lock Type:

3 points lock, 3 mm double-bar

Product Or Component Type:

compact enclosure

Door Opening Side:

reversible 120 °)

Range:

Spacial

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Width:

1000 mm

Door Type:

Solid

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Mercury Free:

Yes

Product Certifications:

UL 508 type A || CAN/CSA 22

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Accessibility For Operation:

front

Environmental Disclosure:

ENVPEP2109018EN

Circularity Profile:

N/A

Standards:

IEC 62208

Warranty:

18 months

Device Application:

multi-purpose

Mounting Plate Description:

without mounting plate

Enclosure Nominal Depth:

300 mm

Number Of Doors:

front face 2

Environmental Characteristic:

corrosive || specific hygiene

Type Of Gland Plate:

without gland plate

Catalog:

View

Datasheet:

View
