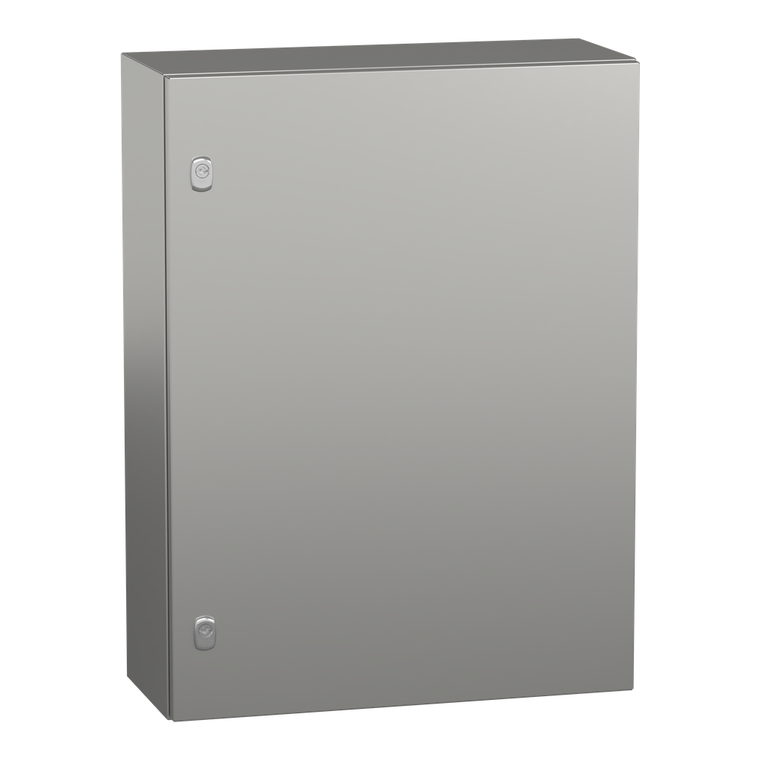

Schneider Electric NSYS3X8625H S3X 316L 800X600X250

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3X8625H S3X 316L 800X600X250

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3X8625H

UPC:

3.60648E+12

MPN:

Condition:

New

Ik Degree Of Protection:

IK10 IEC 62262

Warranty:

18 months

Product Certifications:

CAN/CSA 22 || UL 508 type A

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Standards:

IEC 62208

Range:

Spacial

Enclosure Nominal Width:

600 mm

Material:

lock zamak || hinge stainless steel || body and door stainless steel 316L

Net Weight:

22.58 kg

Product Or Component Type:

compact enclosure

Number Of Doors:

front face 1

Environmental Characteristic:

specific hygiene || corrosive

Enclosure Nominal Height:

800 mm

Sustainable Offer Status:

Green Premium product

Mounting Plate Description:

without mounting plate

Circularity Profile:

N/A

Environmental Disclosure:

ENVPEP2109018EN

Product Name:

Spacial S3X

Accessibility For Operation:

front

Type Of Gland Plate:

without gland plate

Lock Type:

2 points lock, 3 mm double-bar

Door Opening Side:

reversible 120 °)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Application:

multi-purpose

Removable Parts:

door by hinges

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Surface Finish:

body and door Scotch-Brite® brushed || lock chromium plated

Device Composition:

1 body || 1 door || 2 lock door || 2 perforated vertical profile drilled door

Door Type:

Solid

Enclosure Nominal Depth:

250 mm

Installation Accessory Type:

wall-mounting

Body Type:

single piece body, cross-shaped structure || gutter shaped front rail

Ip Degree Of Protection:

IP66 IEC 60529

Catalog:

View

Datasheet:

View
