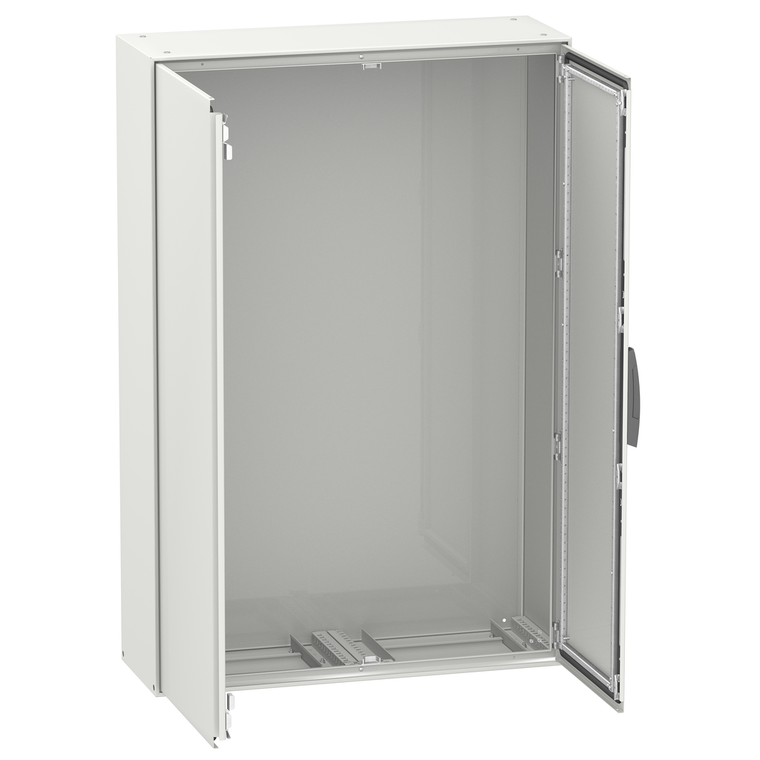

Schneider Electric NSYSM1210302DP Sm W/Mount Plate 2D 1200X1000X300

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSM1210302DP Sm W/Mount Plate 2D 1200X1000X300

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSM1210302DP

UPC:

3.60649E+12

MPN:

Condition:

New

Installation Accessory Type:

floor-standing

Door Opening Side:

left 120 °) || right 120 °)

Number Of Doors:

front 2

Device Application:

multi-purpose

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Accessibility For Operation:

front

Color:

enclosure Gray RAL 7035) || handle Black RAL 9005)

Net Weight:

84 kg

Standards:

IEC 62208

Product Or Component Type:

compact enclosure

Ik Degree Of Protection:

IK10 IEC 62262

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP55 IEC 60529

Device Composition:

1 body || 2 door || 1 cable gland plate || 1 locking system with handle door || 1 blocking system left door || 4 mounting plate bracket || 1 mounting plate

Cable Entry:

1 entry

Product Certifications:

UL || DNV || BV

Range:

Spacial

Enclosure Nominal Height:

1200 mm

Surface Finish:

epoxy-polyester powder

Type Of Gland Plate:

standard

Material:

mounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak

Door Type:

Solid

Enclosure Nominal Width:

1000 mm

Product Name:

Spacial SM

Circularity Profile:

N/A

Lock Type:

4 points lock, handle with 5 mm double bar insert

Environmental Disclosure:

ENVPEP110923EN

Mercury Free:

Yes

Enclosure Nominal Depth:

300 mm

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Body Type:

single piece body with welded rear panel || front part forming a rigid frame with welded corners

Mounting Plate Description:

plain

Removable Parts:

door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws

Catalog:

View

Datasheet:

View
