Schneider Electric NSYSM18850 Sm Wo/Mount Plate 1800X800X500

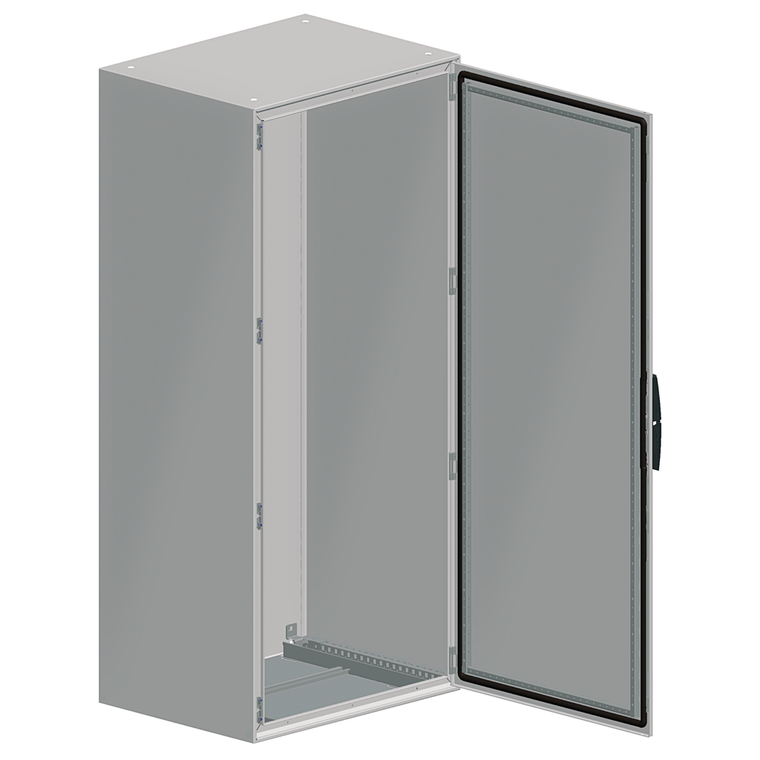

Spacial SM monobloc compact steel enclosure with plain front door. 1800 x 800 x 500 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
- Enclosure Nominal Width:
- 800 mm
- Door Type:
- Solid
- Product Name:
- Spacial SM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Standards:
- IEC 62208
- Material:
- body sheet steel || door sheet steel || hinge zamak
- Device Composition:
- 1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door
- Installation Accessory Type:
- floor-standing
- Device Application:
- multi-purpose
- Removable Parts:
- door by screws hinge || mounting plate bracket by screws
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Body Type:
- single piece body with welded rear panel || front part forming a rigid frame with welded corners
- Mercury Free:
- Yes
- Accessibility For Operation:
- front
- Net Weight:
- 96 kg
- Enclosure Nominal Height:
- 1800 mm
- Type Of Gland Plate:
- standard
- Door Opening Side:
- reversible 120 °)
- Lock Type:
- 4 points lock, handle with 5 mm double bar insert
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Product Certifications:
- DNV || BV || UL
- Range:
- Spacial
- Enclosure Nominal Depth:
- 500 mm
- Cable Entry:
- 1 entry
- Environmental Disclosure:
- ENVPEP110923EN
- Mounting Plate Description:
- without mounting plate
- Product Or Component Type:
- compact enclosure
- Circularity Profile:
- N/A
- Surface Finish:
- epoxy-polyester powder
- Ip Degree Of Protection:
- IP55 IEC 60529
- Ik Degree Of Protection:
- IK10 IEC 62262
- Color:
- enclosure Gray RAL 7035) || handle Black RAL 9005)
- Number Of Doors:
- front 1
