Schneider Electric

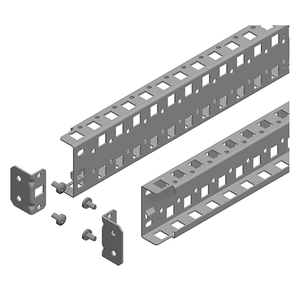

Schneider Electric NSYSUCR9080 2 Universal Rails 3 Rows 800

SKU:

NSYSUCR9080

UPC:

3606485133690

MPN:

Condition:

New

Thickness:

1.5 mm

Material:

steel

Number Of Horizontal Rows:

3

Warranty:

18 months

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Quantity Per Set:

set of 1

Range Compatibility:

Spacial Spacial SF || Spacial Spacial SF 5G || Spacial Spacial SM || Spacial Spacial SFX || Spacial Spacial SMX

Height:

nominal 800 mm || useful 707 mm

Width:

90 mm

Rohs Exemption Information:

Yes

Accessory / Separate Part Category:

mounting accessory

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP110923EN

Mounting Location:

between cross rails || on structure of enclosure

Fixing Mode:

by screws

Maximum Load:

100 kg

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Application:

multi-purpose

Product Or Component Type:

universal cross rail

Range:

Spacial

Device Composition:

fixing elements || 2 cross rails || 4 supports

Adjustment:

adjustable with a pitch of 25 mm

Enclosure Nominal Dimensions:

H: 800 mm

Reach Free Of Svhc:

Yes

Sustainable Offer Status:

Green Premium product

Toxic Heavy Metal Free:

Yes

Circularity Profile:

N/A

Surface Finish:

galvanized

Depth:

27 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Support:

adaptation profile, on SM enclosures

Catalog:

View

Datasheet:

View
