Schneider Electric NSYTBS111113H Abs Ind Box 116X116X133 Hi Pack of 2
Schneider Electric
$24.80
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYTBS111113H Abs Ind Box 116X116X133 Hi Pack of 2

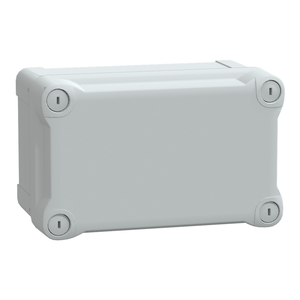

Thalassa TBS industrial ABS box with opaque cover H80. Int is 105 x 105 x 125 mm. Ext is 116 x 116 x 133 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
- Quantity Per Set:
- set of 2
- Environmental Disclosure:
- ENVPEP2012015EN
- Circularity Profile:
- N/A
- Product Or Component Type:
- industrial box
- Ambient Air Temperature For Operation:
- -25-60 °C
- Range:
- Thalassa
- Internal Width:
- 105 mm
- Rohs Exemption Information:
- Yes
- Device Composition:
- 1 body || 1 cover || 4 cover screw
- Product Name:
- Thalassa TBS
- Ambient Air Temperature For Storage:
- -15-40 °C
- Width:
- 116 mm
- Height:
- 116 mm
- Device Application:
- multi-purpose
- Type Of Front Cover:
- high plain cover
- Removable Parts:
- cover by captive screws
- Internal Depth:
- 125 mm
- Fire Resistance:
- 650 °C IEC 60695-2-11
- Lock Type:
- captive screw flat outside sealed area
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- IP66 conforming to NEMA 4.4X
- Net Weight:
- 0.24 kg
- Internal Height:
- 105 mm
- Standards:
- IEC 62208
- Ik Degree Of Protection:
- IK07 IEC 62262
- Sustainable Offer Status:
- Green Premium product
- Material:
- ABS (acrylonitrile butadiene-styrene)
- Product Certifications:
- TÃV
- Depth:
- 133 mm
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Body Type:
- one piece moulded
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cover Fixing:
- plastic screws
- Electrical Insulation Class:
- class II
- Enclosure Mounting:
- wall mounted
- Color:
- Gray RAL 7035)
- Mercury Free:
- Yes
- Catalog:
- View
- Datasheet:
- View
