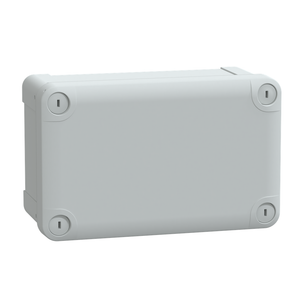

Schneider Electric NSYTBS19128T Abs Ind Box 192X121X87 Lo Tr Pack of 2

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBS19128T Abs Ind Box 192X121X87 Lo Tr Pack of 2

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBS19128T

UPC:

3.60648E+12

MPN:

Condition:

New

Circularity Profile:

N/A

Device Composition:

1 body || 1 cover || 4 cover screw

Cover Fixing:

plastic screws

Net Weight:

0.38 kg

Range:

Thalassa

Internal Depth:

80 mm

Type Of Front Cover:

low transparent cover

Internal Height:

175 mm

Body Type:

one piece moulded

Width:

121 mm

Ambient Air Temperature For Operation:

-25-60 °C

Color:

Gray RAL 7035) || Transparent

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Enclosure Mounting:

wall mounted

Quantity Per Set:

set of 2

Product Name:

Thalassa TBS

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Device Application:

multi-purpose

Ik Degree Of Protection:

IK07 IEC 62262

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Removable Parts:

cover by captive screws

Electrical Insulation Class:

class II

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Reach Free Of Svhc:

Yes

Environmental Disclosure:

ENVPEP2012015EN

Product Or Component Type:

industrial box

Ambient Air Temperature For Storage:

-15-40 °C

Internal Width:

105 mm

Mercury Free:

Yes

Fire Resistance:

650 °C IEC 60695-2-11

Lock Type:

captive screw flat outside sealed area

Product Certifications:

TÜV

Toxic Heavy Metal Free:

Yes

Height:

192 mm

Sustainable Offer Status:

Green Premium product

Standards:

IEC 62208

Material:

ABS (acrylonitrile butadiene-styrene)

Rohs Exemption Information:

Yes

Depth:

87 mm

Catalog:

View

Datasheet:

View
