Schneider Electric NSYTBS19168T Abs Ind Box 192X164X87 Lo Tr

Schneider Electric NSYTBS19168T Abs Ind Box 192X164X87 Lo Tr

Schneider Electric
SKU:
NSYTBS19168T
|
UPC:
3606480165467
Availability:
Contact us to confirm availability and lead times.
$33.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

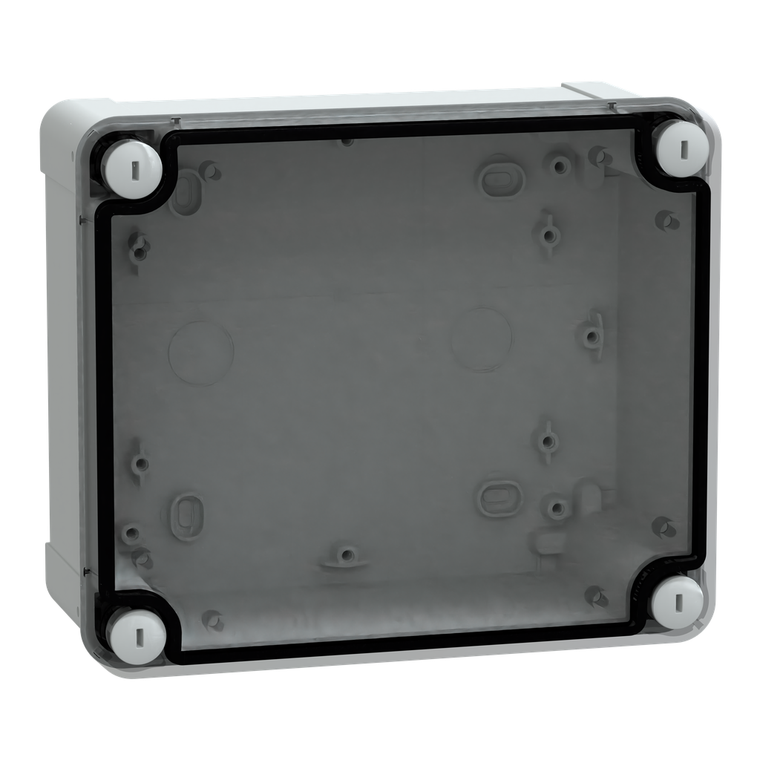

Thalassa TBS industrial ABS box with transparent cover H20. Int is 175 x 150 x 80 mm. Ext is 193 x 164 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Additional Information
Depth:
87 mm
Height:
192 mm
Rohs Exemption Information:
Yes
Fire Resistance:
650 °C IEC 60695-2-11
Net Weight:
0.46 kg
Removable Parts:
cover by captive screws
Product Name:
Thalassa TBS
Internal Depth:
80 mm
Environmental Disclosure:
ENVPEP2012015EN
Ip Degree Of Protection:
IP66 conforming to NEMA 4.4X
Standards:
IEC 62208
Product Certifications:
TÜV
Range:
Thalassa
Width:
164 mm
Device Composition:
1 body || 1 cover || 4 cover screw
Electrical Insulation Class:
class II
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free:
Yes
Device Application:
multi-purpose
Type Of Front Cover:
low transparent cover
Warranty:
18 months
Enclosure Mounting:
wall mounted
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
industrial box
Toxic Heavy Metal Free:
Yes
Cover Fixing:
plastic screws
Internal Height:
175 mm
Ambient Air Temperature For Storage:
-15-40 °C
Internal Width:
150 mm
Body Type:
one piece moulded
Sustainable Offer Status:
Green Premium product
Material:
ABS (acrylonitrile butadiene-styrene)
Ambient Air Temperature For Operation:
-25-60 °C
Color:
Gray RAL 7035) || Transparent
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
N/A
Reach Free Of Svhc:
Yes
Ik Degree Of Protection:
IK07 IEC 62262
Lock Type:
captive screw flat outside sealed area
