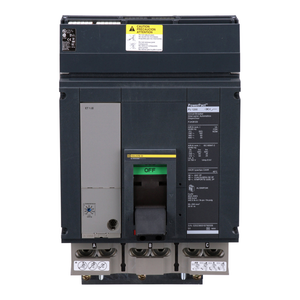

Schneider Electric PGL36120U33A Molded Case Circuit Breaker 600V 1200A

(No reviews yet) Write a Review
SKU:
PGL36120U33A
UPC:
785901677642
Condition:
New
Pvc Free:
Yes
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Net Weight:
32 lb(US)
Continuous Current Rating:
0.8
Mercury Free:
Yes
Depth:
8.05 in
Trip Unit Name:
MicroLogic 5.0
Product Certifications:
UL || CSA || NOM
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ip Degree Of Protection:
front cover IP40
Terminal Identifier:
AL1200P25K
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Trip Unit Technology:
electronic, standard, MicroLogic 5.0, LSI
Device Application:
distribution
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Quality Labels:
CE
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Control Type:
toggle
Environmental Disclosure:
ENVPEP2206033EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Pollution Degree:
3 IEC 60947-1
Wire Stripping Length:
30 mm
Network Frequency:
50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
circuit breaker
Height:
16.16 in
Circularity Profile:
ENVEOLI2206033EN
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Electrical Connection:
lugs, load || lugs, line
Sustainable Offer Status:
Green Premium product
Poles Description:
3P
Breaking Capacity Code:
G
Line Rated Current:
1200-1200 A
Local Signalling:
1 trip indicator green)
Circuit Breaker Application:
HACR rated
Width:
8.27 in
Ambient Air Temperature For Operation:
-2-70 °C
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Range:
PowerPact
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Quantity Per Set:
1
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Name:
PowerPact P
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Brochure:
View
Catalog:
View
Datasheet:
View
$20,177.00

Description

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
