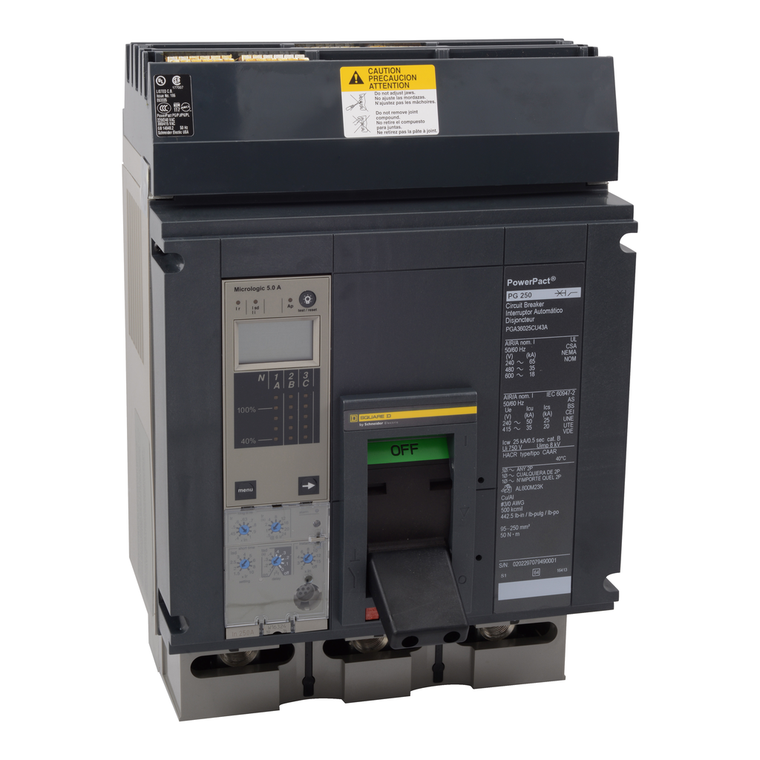

Schneider Electric PJA36080CU44A Molded Case Circuit Breaker 600V 800A

Schneider Electric PJA36080CU44A Molded Case Circuit Breaker 600V 800A

Schneider Electric
SKU:
PJA36080CU44A
|
UPC:
7.85901E+11
$28,058.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Trip Unit Name:
MicroLogic 6.0 A
Mounting Mode:
I-Line bracket)
Eu Rohs Directive:
Compliant with Exemptions
Width:
8.27 in
Local Signalling:
overload 1 1 LED amber) || 1 flag green) || trip causes 4 trip indicator red)
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Range:
PowerPact
Network Frequency:
50/60 Hz
Poles Description:
3P
Product Name:
PowerPact P
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Mounting Support:
bracket
Ambient Air Temperature For Storage:
-50-85 °C
Control Type:
toggle
Mounting Height:
9 in
Warranty:
18 months
Product Certifications:
UL || CSA || NOM
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP2206033EN
Mercury Free:
Yes
Pollution Degree:
3 IEC 60947-1
Phase Connection:
ABC
Circuit Breaker Application:
HACR rated
Product Or Component Type:
circuit breaker
Breaking Capacity Code:
J
Wire Stripping Length:
25 mm
Ip Degree Of Protection:
front cover IP40
Quantity Per Set:
1
Depth:
8.05 in
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Quality Labels:
CE
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Terminal Identifier:
AL800M23K
Electrical Connection:
I-Line connection, line || lugs, load
Net Weight:
32 lb(US)
Continuous Current Rating:
1
Rohs Exemption Information:
Yes
Tightening Torque:
50-50 N.m 95-240 mm² (3 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Awg Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Line Rated Current:
800-800 A
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Device Application:
distribution
Circularity Profile:
ENVEOLI2206033EN
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Pvc Free:
Yes
Height:
12.86 in
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Sustainable Offer Status:
Green Premium product
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
