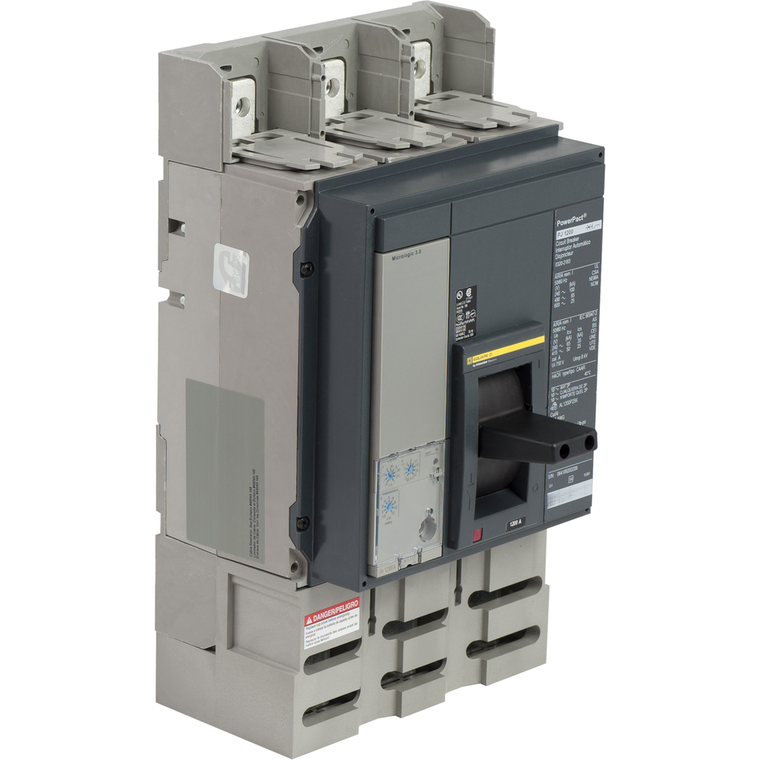

Schneider Electric PJP36100U31A Molded Case Circuit Breaker 600V 1000A

Schneider Electric PJP36100U31A Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
PJP36100U31A
|
UPC:
3.60649E+12
$21,038.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Pvc Free:
Yes
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
8.05 in
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Name:
MicroLogic 3.0
Height:
16.16 in
Eu Rohs Directive:
Compliant with Exemptions
Width:
8.27 in
Poles Description:
3P
Terminal Identifier:
AL1200P25K
Wire Stripping Length:
30 mm
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI2206033EN
Control Type:
toggle
Network Frequency:
50/60 Hz
Ambient Air Temperature For Storage:
-50-85 °C
Net Weight:
32 lb(US)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Quantity Per Set:
1
Pollution Degree:
3 IEC 60947-1
Line Rated Current:
1000-1000 A
Local Signalling:
overload 1 1 LED amber) || 1 trip indicator green)
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Mounting Support:
lug
Electrical Connection:
terminal nut, line || lugs, load
Product Certifications:
UL || CSA || NOM
Range:
PowerPact
Warranty:
18 months
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Continuous Current Rating:
0.8
Breaking Capacity Code:
J
Product Or Component Type:
circuit breaker
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Product Name:
PowerPact P
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Operation:
-2-70 °C
Mounting Mode:
unit mount lug)
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Application:
distribution
Environmental Disclosure:
ENVPEP2206033EN
Quality Labels:
CE
Ip Degree Of Protection:
front cover IP40
