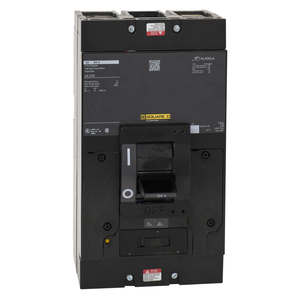

Schneider Electric Q4L3350 Molded Case Circuit Breaker 240V 350A
Schneider Electric
$3,831.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Square D Q4 molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. Q4 circuit breakers can be used for multiple applications such as construction, in commercial and industrial buildings, for control equipment panels for OEM commercial, and in mines. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This 3 pole unit mount circuit breaker is equipped with a thermal magnetic trip unit with rated current of 350A and voltage of 240VAC. The breaker has an interrupting rating of 25kA at 240VAC and is provided with UL listed mechanical lugs. All Q4 molded case circuit breakers have trip indication of the operating handle in the central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified.
- Halogen Content Performance:
- Halogen free plastic parts product
- Depth:
- 5.84 in
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1410004EN
- Height:
- 11 in
- Warranty:
- 18 months
- Magnetic Tripping Current:
- 3500-3500 A
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Line Rated Current:
- 350 A
- Terminal Identifier:
- AL400LA
- Circularity Profile:
- N/A
- Magnetic Hold Current:
- 1750 A
- Breaking Capacity Code:
- Q4
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Electrical Connection:
- lugs, load || lugs, line
- Product Or Component Type:
- circuit breaker
- Eu Rohs Directive:
- Compliant with Exemptions
- Mounting Mode:
- unit mount
- Width:
- 6 in
- Pvc Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Trip Unit Technology:
- thermal-magnetic
- Tightening Torque:
- 42-42 N.m 50-300 mm² (AWG 1...600 kcmil) || 42-42 N.m 50-120 mm² (AWG 1...250 kcmil)
- Mercury Free:
- Yes
- Poles Description:
- 3P
- Product Certifications:
- UL Listed || IEC || CSA
