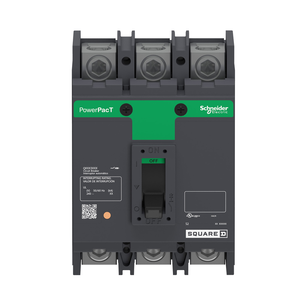

Schneider Electric QBA221004 Molded Case Circuit Breaker 240V 100A

Schneider Electric QBA221004 Molded Case Circuit Breaker 240V 100A

Schneider Electric
SKU:
QBA221004
|
UPC:
785901760306
Availability:
Contact us to confirm availability and lead times.
$600.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 100A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Additional Information
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000
Ambient Air Temperature For Operation:
40-70 °C
Environmental Disclosure:
ENVPEP1406032EN
Trip Unit Technology:
thermal-magnetic
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
N/A
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Sustainable Offer Status:
Green Premium product
Circuit Breaker Application:
HACR rated
Eu Rohs Directive:
Compliant with Exemptions
Rohs Exemption Information:
Yes
Mounting Mode:
I-Line bracket)
Product Certifications:
UL || CSA || NOM
[Uimp] Rated Impulse Withstand Voltage:
8 kV UL
Magnetic Hold Current:
1200 A
Wire Stripping Length:
22 mm
Product Name:
PowerPact Q
Depth:
3.93 in
Breaking Capacity Code:
B
Width:
3.00 in
Continuous Current Rating:
0.8
Device Application:
distribution
Line Rated Current:
100-100 A
Phase Connection:
BC
Electrical Connection:
I-Line connection, line || lugs, load
Control Type:
operating handle
Height:
6.47 in
Mounting Height:
3 in
Warranty:
18 months
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz UL
Mercury Free:
Yes
Breaking Capacity:
10 kA 120/208 V AC 50/60 Hz UL || 10 kA 240 V AC 50/60 Hz UL
Poles Description:
2P
Local Signalling:
1 trip indicator green)
Pvc Free:
Yes
Magnetic Tripping Current:
2400-2400 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Halogen Content Performance:
Halogen free product
Line Rated Current:
100 A
Mounting Support:
bracket
Mechanical Durability:
1000 cycles loaded || 5000 cycles no load
Range:
PowerPact
Tightening Torque:
28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Product Or Component Type:
circuit breaker
Network Frequency:
50/60 Hz
Utilisation Category:
category A
