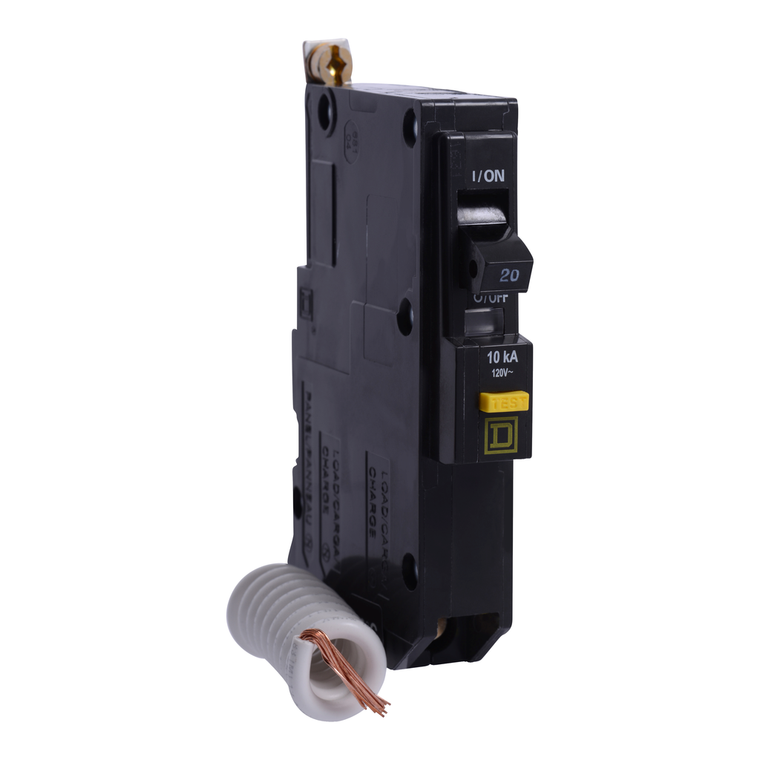

Schneider Electric QOB120VHGFI35 Miniature Circuit Breaker 120V 20A
Schneider Electric
$596.00
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail, and is rated at operation 50 degrees C. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Product Certifications:
- UL Listed || CSA
- Line Rated Current:
- 20 A
- Circuit Breaker Type:
- ground fault protecting class A 6 mA
- Height:
- 105 mm
- Tightening Torque:
- 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
- Warranty:
- 18 months
- Electrical Connection:
- pressure plate
- Awg Gauge:
- AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium
- Mounting Mode:
- bolt-on
- Ambient Air Temperature For Operation:
- 50 °C
- Range Of Product:
- QO
- Product Or Component Type:
- miniature circuit-breaker
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Circuit Breaker Application:
- not rated
- Depth:
- 74 mm
- Poles Description:
- 1P
- Net Weight:
- 0.245 kg
- Number Of Spaces Required:
- 1
- Breaking Capacity:
- 22 kA 120 V AC 50/60 Hz
- Eu Rohs Directive:
- Under investigation
- [Ue] Rated Operational Voltage:
- 120 V AC
