Schneider Electric QOB125VH Miniature Circuit Breaker 120/240V 25A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

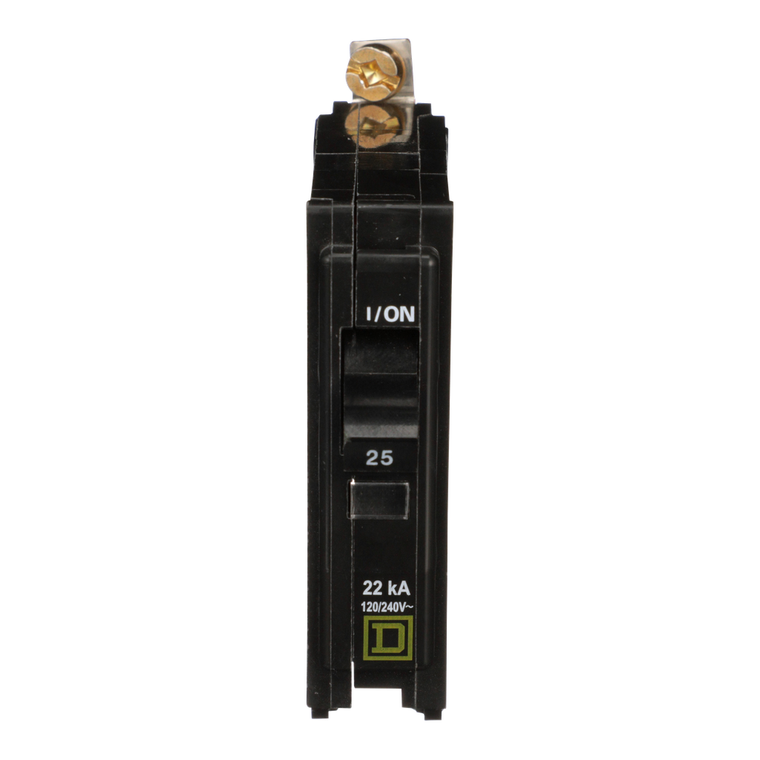

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Product Or Component Type:
- miniature circuit-breaker
- Toxic Heavy Metal Free:
- Yes
- Halogen Content Performance:
- Halogen free product
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 74 mm
- Ambient Air Temperature For Operation:
- 40 °C
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Line Rated Current:
- 25 A
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.132 kg
- Circularity Profile:
- N/A
- Circuit Breaker Application:
- HACR rated
- Number Of Spaces Required:
- 1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 19 mm
- Mounting Mode:
- bolt-on
- Circuit Breaker Type:
- standard
- Electrical Connection:
- pressure plate
- Poles Description:
- 1P
- Warranty:
- 18 months
- Range Of Product:
- QO
- Tightening Torque:
- 4.6-4.6 N.m
- Height:
- 76 mm
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
- Product Certifications:
- UL Listed || CSA
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
