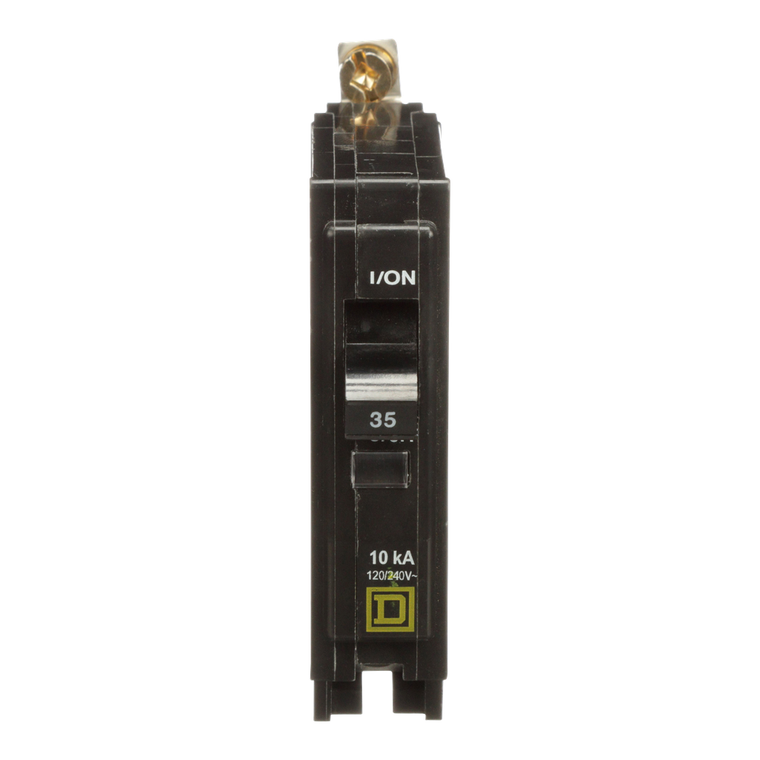

Schneider Electric QOB135 Miniature Circuit Breaker 120/240V 35A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Product Or Component Type:
- miniature circuit-breaker
- Tightening Torque:
- 5-5 N.m
- Depth:
- 74 mm
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.136 kg
- Toxic Heavy Metal Free:
- Yes
- Halogen Content Performance:
- Halogen free product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Spaces Required:
- 1
- Circuit Breaker Application:
- HACR rated
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Width:
- 19 mm
- Poles Description:
- 1P
- Line Rated Current:
- 35 A
- Warranty:
- 18 months
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Mercury Free:
- Yes
- Range Of Product:
- QO
- Electrical Connection:
- box lugs
- Eu Rohs Directive:
- Compliant with Exemptions
- Mounting Mode:
- bolt-on
- Product Certifications:
- UL Listed || CSA
- Circularity Profile:
- N/A
- Circuit Breaker Type:
- standard
- Height:
- 79 mm
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- 40 °C
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC
