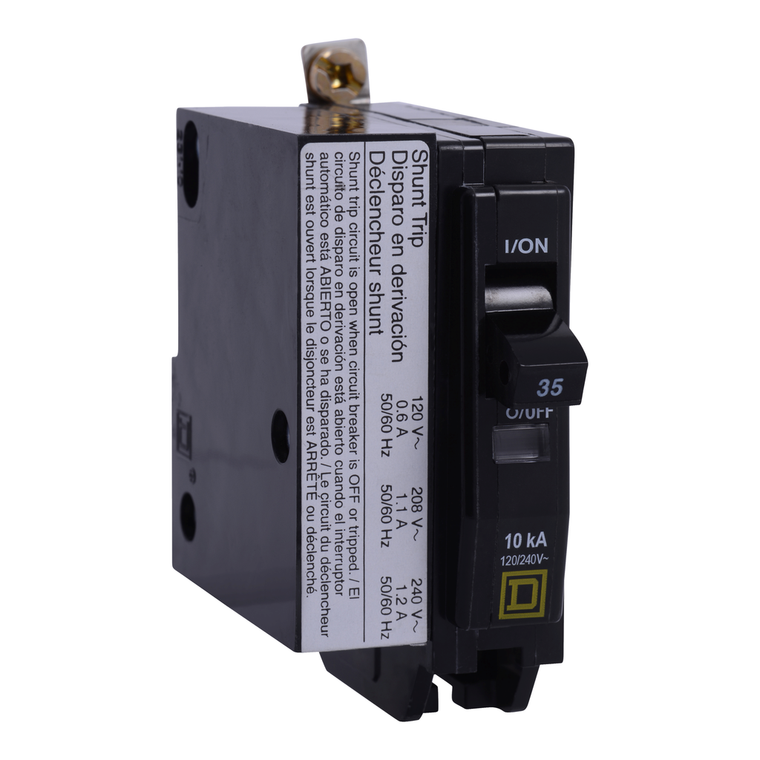

Schneider Electric QOB1351021 Miniature Circuit Breaker 120/240V 35A

Schneider Electric QOB1351021 Miniature Circuit Breaker 120/240V 35A

Schneider Electric
SKU:
QOB1351021
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$229.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Net Weight:
0.313 kg
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC
Poles Description:
1P
Electrical Connection:
box lugs
Rohs Exemption Information:
Yes
Toxic Heavy Metal Free:
Yes
Mounting Mode:
bolt-on
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Operation:
40 °C
Circuit Breaker Type:
standard
Depth:
74 mm
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
N/A
Product Or Component Type:
miniature circuit-breaker
Halogen Content Performance:
Halogen free product
Awg Gauge:
AWG 8...AWG 2 copper or aluminium
Number Of Spaces Required:
2
Product Certifications:
UL Listed || CSA
Line Rated Current:
35 A
Circuit Breaker Application:
HACR rated
Tightening Torque:
5-5 N.m
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
38 mm
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Height:
79 mm
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Range Of Product:
QO
Warranty:
18 months
Accessory / Separate Part Type:
shunt trip 120/208/240 V AC
Brochure:
View
Datasheet:
View
