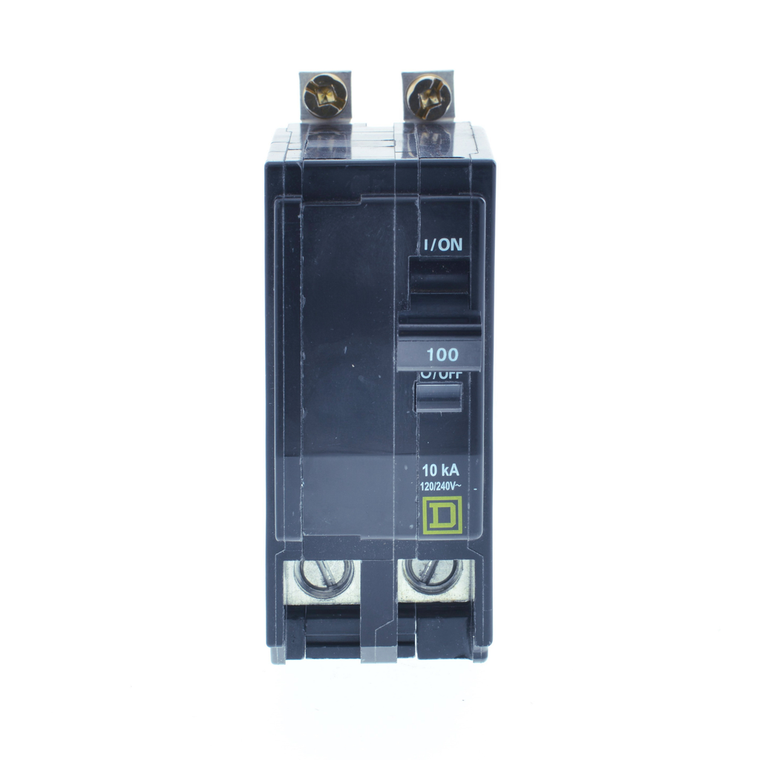

Schneider Electric QOB210035 Miniature Circuit Breaker 120/240V 100A

Schneider Electric QOB210035 Miniature Circuit Breaker 120/240V 100A

Schneider Electric
SKU:
QOB210035
|
UPC:
3606486144541
Availability:
Contact us to confirm availability and lead times.
$288.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product is rated for operation at 50 degrees C. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive:
Compliant with Exemptions
Circuit Breaker Application:
HACR rated
Mercury Free:
Yes
Line Rated Current:
100 A
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Number Of Spaces Required:
2
Range Of Product:
QO
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tightening Torque:
5.6-5.6 N.m
Rohs Exemption Information:
Yes
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC
Height:
89 mm
Depth:
74 mm
Circuit Breaker Type:
standard
Circularity Profile:
N/A
Sustainable Offer Status:
Green Premium product
Awg Gauge:
AWG 4...AWG 2/0 copper or aluminium
Electrical Connection:
box lugs
Product Or Component Type:
miniature circuit-breaker
Net Weight:
0.331 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Poles Description:
2P
Ambient Air Temperature For Operation:
50 °C
Product Certifications:
UL Listed || CSA
Halogen Content Performance:
Halogen free product
Width:
38 mm
Mounting Mode:
bolt-on
Warranty:
18 months
