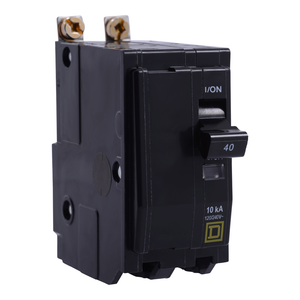

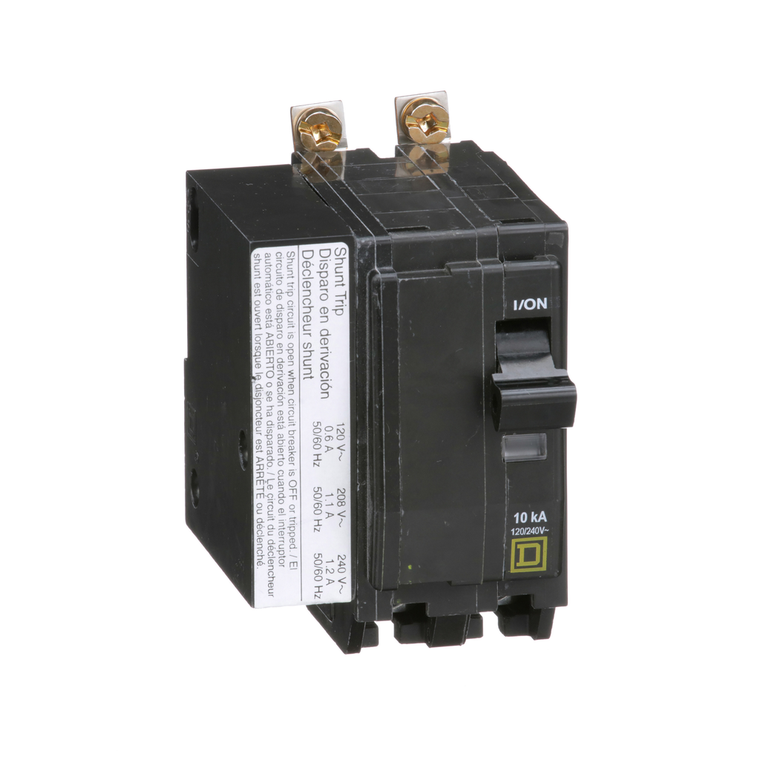

Schneider Electric QOB2401021 Miniature Circuit Breaker 120/240V 40A

(No reviews yet) Write a Review
SKU:
QOB2401021
UPC:
785901494324
Condition:
New
Circularity Profile:
N/A
Number Of Spaces Required:
3
Height:
79 mm
Mounting Mode:
bolt-on
Product Or Component Type:
miniature circuit-breaker
Net Weight:
0.435 kg
Circuit Breaker Application:
HACR rated
Accessory / Separate Part Type:
shunt trip 120/208/240 V AC
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Poles Description:
2P
Rohs Exemption Information:
Yes
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Warranty:
18 months
Eu Rohs Directive:
Compliant with Exemptions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
40 °C
Electrical Connection:
box lugs
Circuit Breaker Type:
standard
Line Rated Current:
40 A
Width:
57 mm
Awg Gauge:
AWG 8...AWG 2 copper or aluminium
Product Certifications:
UL Listed || CSA
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range Of Product:
QO
Halogen Content Performance:
Halogen free product
Depth:
74 mm
Tightening Torque:
5-5 N.m
Toxic Heavy Metal Free:
Yes
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC
$278.00

Description

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
