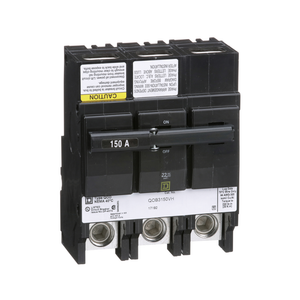

Schneider Electric QOB3150VHFT Miniature Circuit Breaker 240V 150A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOB3150VHFT Miniature Circuit Breaker 240V 150A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOB3150VHFT

UPC:

3.60649E+12

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Line Rated Current:

150 A

Mercury Free:

Yes

Warranty:

18 months

Height:

145 mm

Awg Gauge:

AWG 4...300 kcmil copper or aluminium

Poles Description:

3P

Circuit Breaker Type:

standard

[Ue] Rated Operational Voltage:

120/240 V AC || 240 V AC || 120 V AC

Number Of Spaces Required:

6

Width:

114 mm

Circuit Breaker Application:

not rated

Electrical Connection:

box lugs

Eu Rohs Directive:

Compliant with Exemptions

Range Of Product:

QO

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

40 °C

Breaking Capacity:

22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz

Net Weight:

0.454 kg

Product Certifications:

UL Listed || CSA

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Mounting Mode:

bolt-on

Depth:

124 mm

Tightening Torque:

28.3-28.3 N.m

Product Or Component Type:

miniature circuit-breaker

Brochure:

View

Catalog:

View

Datasheet:

View
