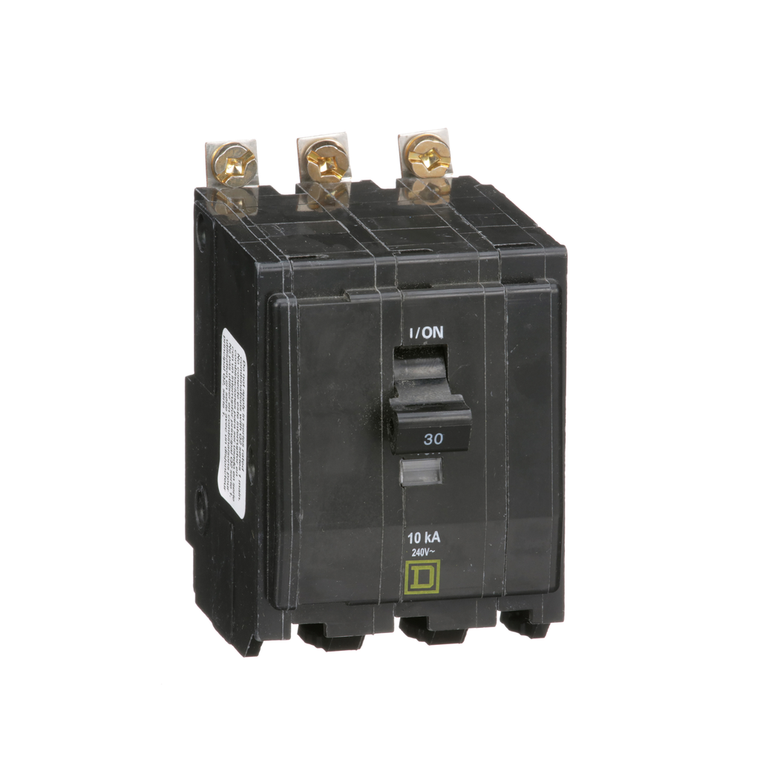

Schneider Electric QOB330VHFT Miniature Circuit Breaker 240V 30A
Schneider Electric
$528.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL Listed || CSA
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Depth:
- 74 mm
- Width:
- 57 mm
- Number Of Spaces Required:
- 3
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Height:
- 76 mm
- Poles Description:
- 3P
- Range Of Product:
- QO
- Mounting Mode:
- bolt-on
- Eu Rohs Directive:
- Compliant with Exemptions
- Electrical Connection:
- pressure plate
- Toxic Heavy Metal Free:
- Yes
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Ambient Air Temperature For Operation:
- 40 °C
- Circuit Breaker Application:
- HACR rated
- Circuit Breaker Type:
- standard
- Product Or Component Type:
- miniature circuit-breaker
- Tightening Torque:
- 4.6-4.6 N.m
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Net Weight:
- 0.395 kg
- Line Rated Current:
- 30 A
