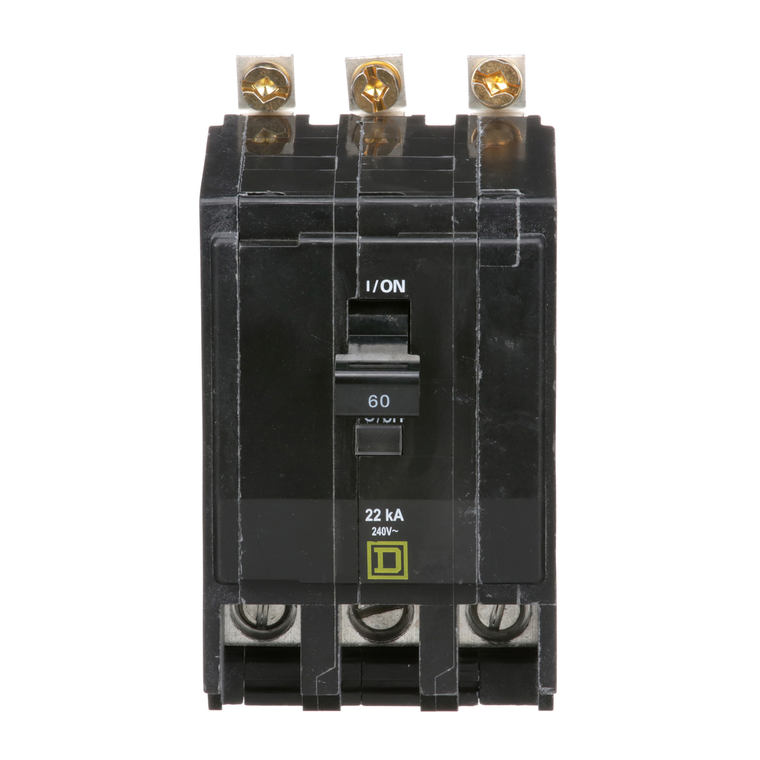

Schneider Electric QOB360VH Miniature Circuit Breaker 240V 60A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Sustainable Offer Status:
- Green Premium product
- Number Of Spaces Required:
- 3
- Circuit Breaker Type:
- standard
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.499 kg
- Product Certifications:
- UL Listed || CSA
- Height:
- 79 mm
- Ambient Air Temperature For Operation:
- 40 °C
- Range Of Product:
- QO
- Width:
- 57 mm
- Poles Description:
- 3P
- Halogen Content Performance:
- Halogen free product
- Mounting Mode:
- bolt-on
- Product Or Component Type:
- miniature circuit-breaker
- Electrical Connection:
- box lugs
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Circuit Breaker Application:
- HACR rated
- Eu Rohs Directive:
- Compliant with Exemptions
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Depth:
- 74 mm
- Tightening Torque:
- 5.6-5.6 N.m
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Line Rated Current:
- 60 A
- Mercury Free:
- Yes
