Schneider Electric

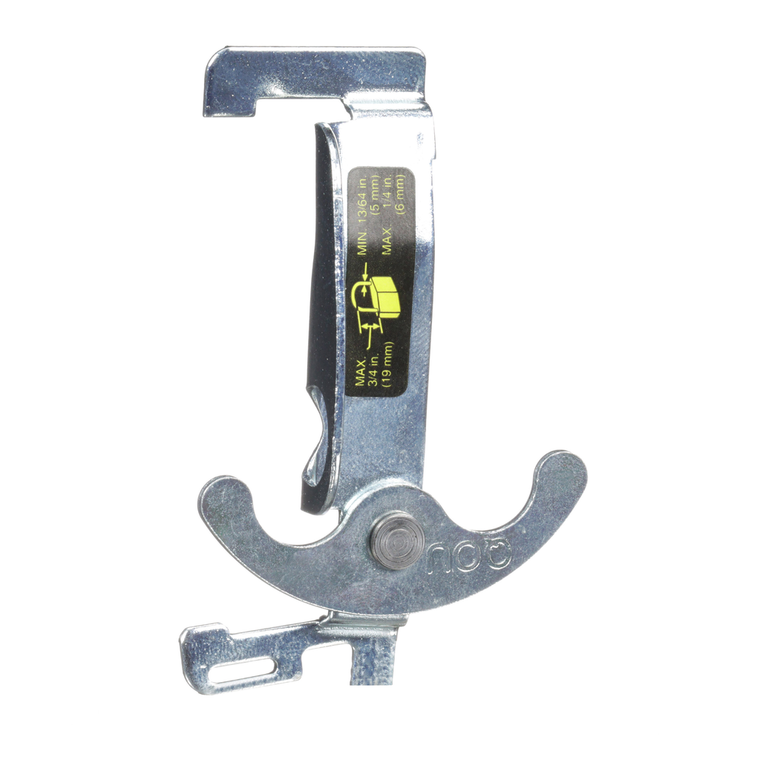

Schneider Electric QOU2DTILA Cb Accessory Interlock Attachment

(No reviews yet) Write a Review
SKU:
QOU2DTILA
UPC:
785901376385
Condition:
New
Range Of Product:
QOU
Mercury Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Mounting Location:
left side of circuit-breaker
Product Or Component Type:
handle interlocking
Warranty:
18 months
Halogen Content Performance:
Halogen free product
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mechanical Interlocking:
with mechanical interlocking between pairs
Toxic Heavy Metal Free:
Yes
Rohs Exemption Information:
Yes
Product Destination:
QOU circuit breaker
Circularity Profile:
N/A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Brochure:
View
Catalog:
View
Datasheet:
View
$24.90

Description

QO and Square D, QOU2DTILA, is an accessory part for QOO Low Ampere Circuit breakers. Performed as mechanical interlock attachment can be used to interlock two circuit breakers mounted side-by-side so that only one circuit breaker can be ON at a time. A 1P or 2P circuit breaker can be mounted on the left and interlocked with a 2P or 3P circuit breaker on the right. .
