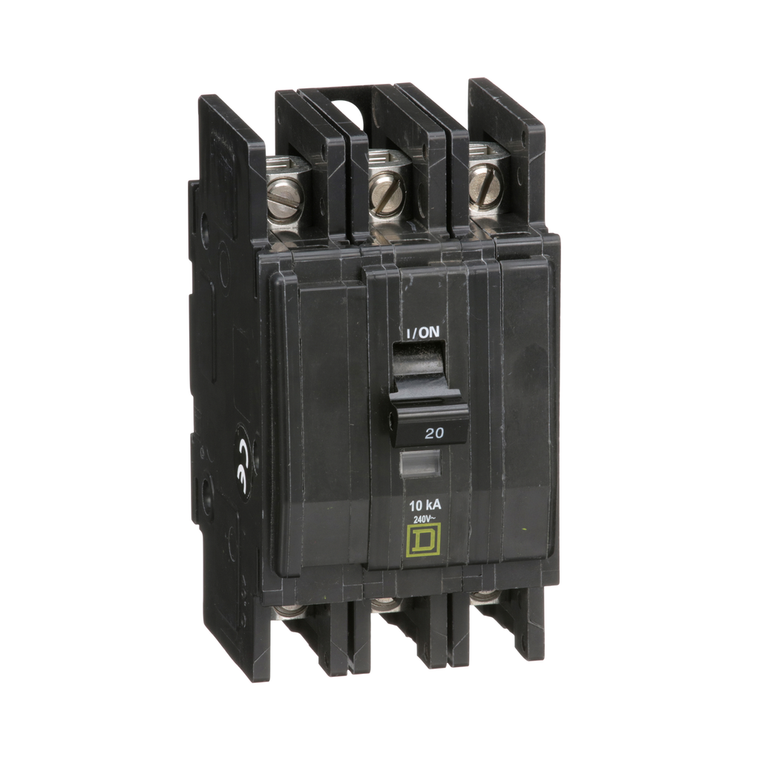

Schneider Electric QOU320B Miniature Circuit Breaker 240V 20A
Schneider Electric
$303.48
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This three pole QOU miniature circuit breaker is rated as 20A, 240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The ring tongue connectors will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 2.25 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified. This miniature circuit breaker is bulk packaged.
- Line Rated Current:
- 20 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Packing:
- bulk
- Mounting Mode:
- unit mount
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Depth:
- 2.95 in
- Product Certifications:
- UL Listed || IEC || CSA
- Toxic Heavy Metal Free:
- Yes
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Halogen Content Performance:
- Halogen free product
- Circuit Breaker Application:
- HACR rated
- Width:
- 2.25 in
- Range Of Product:
- QOU
- Eu Rohs Directive:
- Compliant with Exemptions
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
- Circularity Profile:
- N/A
- Warranty:
- 18 months
- Product Or Component Type:
- miniature circuit-breaker
- Height:
- 4.05 in
- Circuit Breaker Type:
- standard
