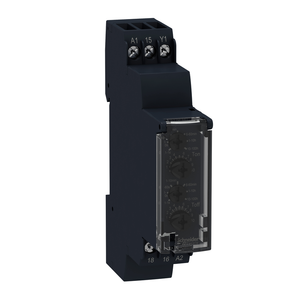

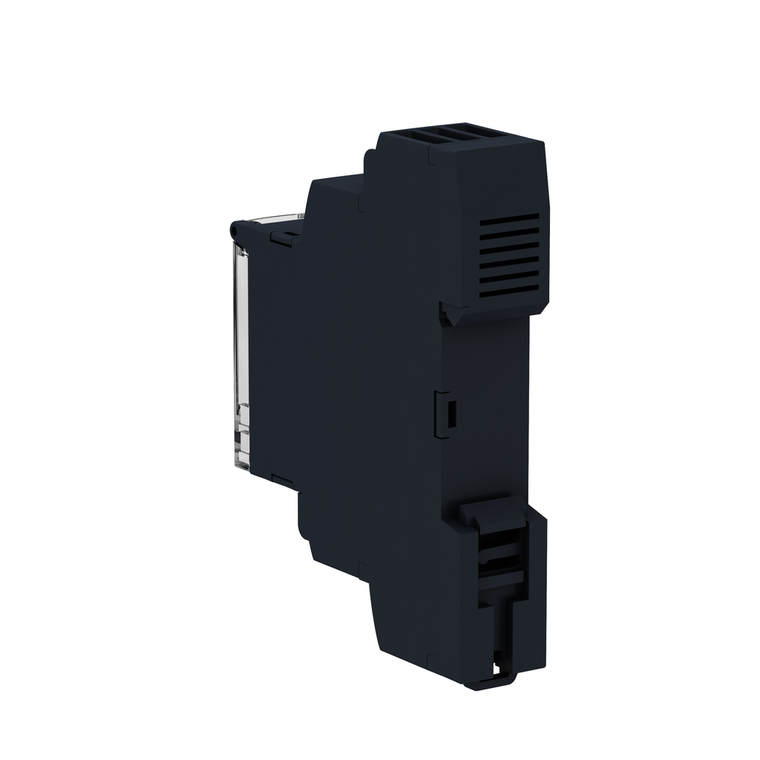

Schneider Electric RE17LLBM Flashing Timer
Schneider Electric
$75.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers L, Li asymmetrical flashing functions. Solid state output, with no moving parts, longer product life and reduced sensitivity to vibrations. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
- Product Or Component Type:
- dual function relay
- Marking:
- CE
- Time Delay Type:
- asymmetrical flashing
- Functionality:
- asymmetrical flashing timer
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Reset Time:
- 350 ms on de-energisation typical
- Mercury Free:
- Yes
- Nominal Output Current:
- 0.7 A
- Temperature Drift:
- +/- 0.05 %/°C
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Maximum Switching Voltage:
- 250 V AC
- Discrete Output Type:
- solid state
- Maximum Voltage Drop:
- <4 V 3-wire || <8 V 2-wire
- Voltage Drift:
- +/- 0.2 %/V
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Input Voltage:
- 7 V
- Derating Factor:
- 5 mA/°C
- Electromagnetic Compatibility:
- electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec
- Control Type:
- selector switch front panel
- Maximum Delay Response:
- 100 ms
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Standards:
- IEC 61000-6-2 || IEC 61000-6-4 || IEC 61812-1 || IEC 61000-6-1 || IEC 61000-6-3 || 2006/95/EC || 2004/108/EC
- Compatibility Code:
- RE17
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Safety Reliability Data:
- B10d = 320000 || MTTFd = 353.8 years
- Ip Degree Of Protection:
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Impulse Duration:
- 0.05 s typical
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Housing Material:
- self-extinguishing
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Range Of Product:
- Harmony Timer Relays
- Time Delay Type:
- L, Li
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2/50 µs
- Time Delay Range:
- 6...60 s || 6...60 min || 1...10 min || 0.1...1 s || 1...10 h || 10...100 h || 1...10 s
- Relative Humidity:
- 93-93 % without condensation IEC 60068-2-30
- Breaking Capacity:
- 0.5 A AC UL || 0.7 A AC 20 °C
- Maximum Output Current:
- 20 A
- Minimum Switching Current:
- 10 mA
- Component Name:
- RE17L
- On-Load Factor:
- 1
- Immunity To Microbreaks:
- 20 ms
- Ambient Air Temperature For Storage:
- -30-60 °C
- Electrical Durability:
- 100000000 cycles
- Product Certifications:
- cULus || GL || CSA
- Circularity Profile:
- ENVEOLI121113EN
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- [Us] Rated Supply Voltage:
- 24...240 V AC 50/60 Hz
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Rate In Hz:
- 10 Hz
- Ambient Air Temperature For Operation:
- -20-60 °C
- Net Weight:
- 0.068 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Voltage Range:
- 0.85...1.1 Us
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP121117EN
- Maximum Leakage Current:
- 5 mA
- Power Consumption In Va:
- 0-3 VA 240 V AC
- Mounting Position:
- any position in relation to normal vertical mounting plane
- China Rohs Regulation:
- X
