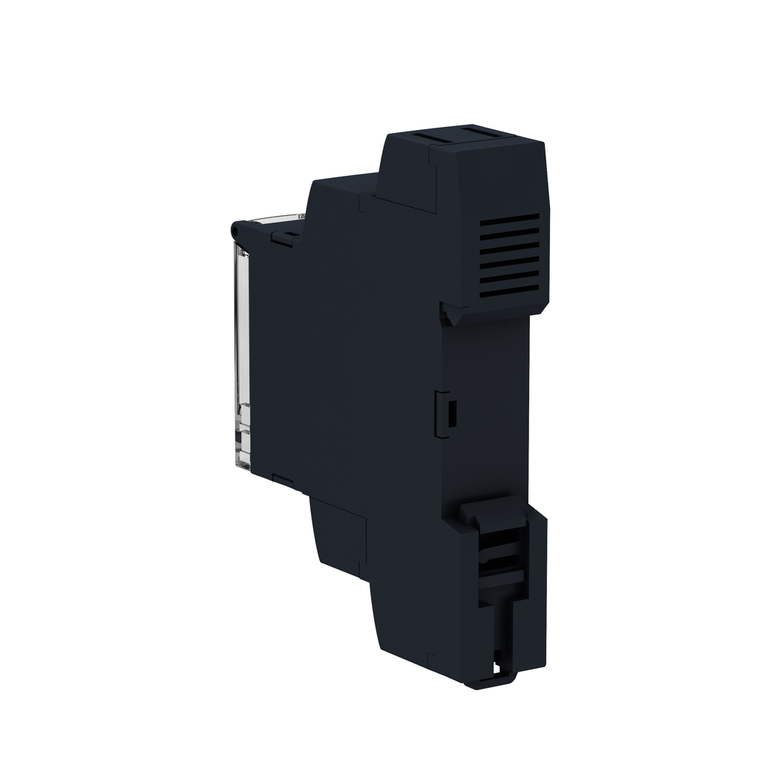

Schneider Electric RE17LMBM Multi Function Timer

(No reviews yet) Write a Review

Write a Review

Schneider Electric RE17LMBM Multi Function Timer

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RE17LMBM

UPC:

3606480552663

MPN:

Condition:

New

Standards:

2004/108/EC || IEC 61000-6-2 || IEC 61812-1 || IEC 61000-6-4 || IEC 61000-6-1 || 2006/95/EC || IEC 61000-6-3

Sustainable Offer Status:

Green Premium product

Supply Frequency:

50...60 Hz +/- 5 %

Impulse Duration:

0.05 s typical

Rohs Exemption Information:

Yes

Voltage Drift:

+/- 0.2 %/V

Discrete Output Type:

solid state

Vibration Resistance:

20 m/s² 10-150 Hz)IEC 60068-2-6

Connections - Terminals:

screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || s

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Component Name:

RE17L

Marking:

CE

China Rohs Regulation:

X

[Uimp] Rated Impulse Withstand Voltage:

5 kV 1.2/50 µs

Nominal Output Current:

0.7 A

Range Of Product:

Harmony Timer Relays

Creepage Distance:

4 kV/3 IEC 60664-1

Maximum Delay Response:

100 ms

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Power Consumption In Va:

0-3 VA 240 V AC

Electromagnetic Compatibility:

electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec

Ambient Air Temperature For Operation:

-20-60 °C

Relative Humidity:

93-93 % without condensation IEC 60068-2-30

Minimum Switching Current:

10 mA

Operating Rate In Hz:

10 Hz

Ambient Air Temperature For Storage:

-30-60 °C

Mounting Support:

35 mm DIN rail conforming to IEC 60715

Housing Material:

self-extinguishing

Reset Time:

350 ms on de-energisation typical

Maximum Voltage Drop:

<4 V 3-wire || <8 V 2-wire

Functionality:

multifunction

Insulation Resistance:

100 MOhm 500 V DC IEC 60664-1

Tightening Torque:

0.6-1 N.m IEC 60947-1

Control Type:

selector switch front panel

Dielectric Strength:

2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1

Time Delay Type:

A, Ac, At, B, Bw, C, D, Di, H, Ht

Environmental Disclosure:

ENVPEP121117EN

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Product Certifications:

GL || cULus || CSA

Maximum Output Current:

20 A

Maximum Switching Voltage:

250 V AC

Safety Reliability Data:

MTTFd = 353.8 years || B10d = 320000

Time Delay Type:

power on-delay || on-delay and off-delay || interval || off-delay || symmetrical flashing

On-Load Factor:

1

Input Voltage:

8 V

[Us] Rated Supply Voltage:

24...240 V AC 50/60 Hz

Circularity Profile:

ENVEOLI121113EN

Product Or Component Type:

multifunction relay

Temperature Drift:

+/- 0.05 %/°C

Ip Degree Of Protection:

IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Repeat Accuracy:

+/- 0.5 % IEC 61812-1

Breaking Capacity:

0.5 A AC UL || 0.7 A AC 20 °C

Time Delay Range:

1...10 s || 6...60 s || 6...60 min || 1...10 h || 10...100 h || 1...10 min || 0.1...1 s

Net Weight:

0.068 kg

Derating Factor:

5 mA/°C

Electrical Durability:

100000000 cycles

Mounting Position:

any position in relation to normal vertical mounting plane

Voltage Range:

0.85...1.1 Us

Compatibility Code:

RE17

Mercury Free:

Yes

Width:

17.5 mm

Setting Accuracy Of Time Delay:

+/- 10 % of full scale 25 °C IEC 61812-1

Maximum Leakage Current:

5 mA

Immunity To Microbreaks:

20 ms

Maximum Power Consumption In W:

1.5 W 240 V DC
