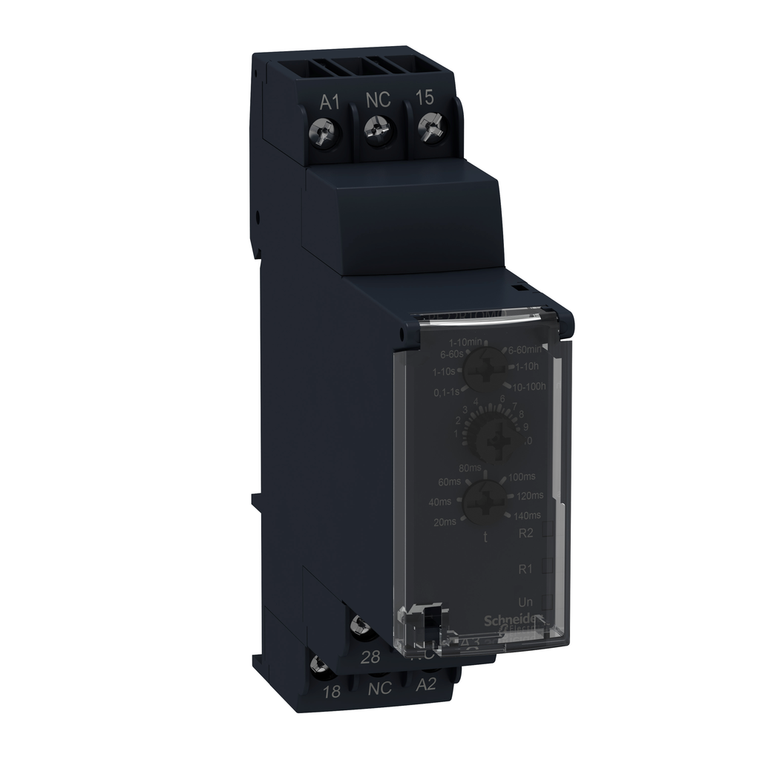

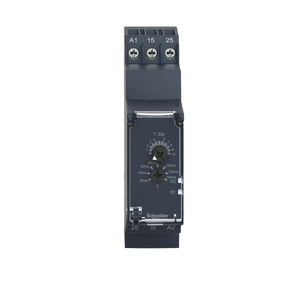

Schneider Electric RE22R1QMQ Star-Delta Timing
This Harmony RE22 modular single function timer can be set between 0.1 seconds and 300 hours." "It provides function Q and it is mountable on DIN rail." "This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0
- Sustainable Offer Status:
- Green Premium product
- Minimum Pulse Duration:
- 30 ms || 100 ms under load
- Ambient Air Temperature For Storage:
- -30-60 °C
- Safety Reliability Data:
- B10d = 260000 || MTTFd = 273.9 years
- Ambient Air Temperature For Operation:
- -20-60 °C
- Relative Humidity:
- 93-93 %, without condensation IEC 60068-2-30
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Time Delay Type:
- star-delta
- Standards:
- IEC 61000-6-4 || IEC 61812-1 || IEC 61000-6-1 || IEC 61000-6-3 || IEC 61000-6-2
- Time Delay Range:
- 1...10 h || 10...100 h || 6...60 s || 1...10 min || 0.1...1 s || 1...10 s || 6...60 min
- China Rohs Regulation:
- X
- Directives:
- 2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Environmental Disclosure:
- ENVPEP1401008EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Maximum Switching Current:
- 8 mA
- Housing Material:
- self-extinguishing
- Electrical Durability:
- 100000 cycles for resistive load, 8 A at 250 V, AC
- Ip Degree Of Protection:
- housing IP40 IEC 60529 || terminal block IP20 IEC 60529 || front face IP40 IEC 60529
- Electromagnetic Compatibility:
- electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || fast transients immuni
- Mechanical Durability:
- 10000000 cycles
- Temperature Drift:
- +/- 0.05 %/°C
- Minimum Switching Current:
- 10 mA 5 V
- Voltage Range:
- 0.85...1.1 Us
- [Us] Rated Supply Voltage:
- 380...440 V AC || 230...240 V AC
- Maximum Switching Voltage:
- 250 V
- Breaking Capacity:
- 2000 VA
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Power Consumption In Va:
- 8-8 VA 230...240 V || 17-17 VA 380...440 V
- Mounting Position:
- any position in relation to normal vertical mounting plane
- Contacts Type And Composition:
- 1 C/O timed contact
- Control Type:
- rotary knob front panel
- Voltage Drift:
- +/- 0.2 %/V
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Supply Frequency:
- 50...60 Hz +/- 5 %
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2-50 µs IEC 60664-1 || 5 kV IEC 61812-1
- Product Certifications:
- cULus || RCM || CSA || EAC || GL || CCC || CE
- Discrete Output Type:
- relay
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Device Short Name:
- RE22
- Status Led:
- Green LED flashing)timing in progress || Green LED steady)power ON || Yellow LEDrelay energised
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Range Of Product:
- Harmony Timer Relays
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Connections - Terminals:
- screw terminals, 2 x 1.5 mm² with cable end || screw terminals, 2 x 2.5 mm² without cable end
- Product Or Component Type:
- single function relay
- Reset Time:
- 120 ms on de-energisation
- Circularity Profile:
- ENVEOLI1401008EN
- Maximum Delay Response:
- 100 ms
- Immunity To Microbreaks:
- 10 ms
- Width:
- 22.5 mm
- Net Weight:
- 0.093 kg
- Nominal Output Current:
- 0.333333333333333
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Catalog:
- View
- Datasheet:
- View
