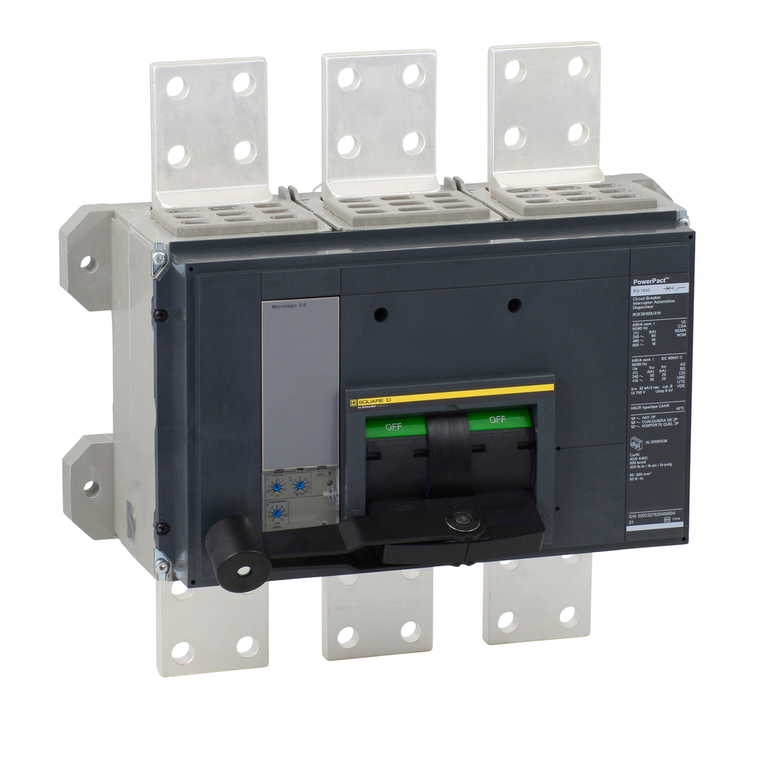

Schneider Electric RGF36200U31A Molded Case Circuit Breaker 600V 2000A

Schneider Electric RGF36200U31A Molded Case Circuit Breaker 600V 2000A

Schneider Electric
SKU:
RGF36200U31A
|
UPC:
785901865551
$23,160.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2000A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. The circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Breaking Capacity Code:
G
Device Application:
distribution
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Height:
16.24 in
Depth:
14.49 in
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Ambient Air Temperature For Operation:
-25-70 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Utilisation Category:
category A
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Product Or Component Type:
circuit breaker
Ip Degree Of Protection:
IP40
Poles Description:
3P
Circularity Profile:
ENVEOLI2206034EN
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Range:
PowerPact
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Pvc Free:
Yes
Mounting Mode:
unit mount busbar)
Terminal Identifier:
AL2500RK
Circuit Breaker Application:
HACR rated
Pollution Degree:
3 IEC 60947-1
Mounting Support:
busbar
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Local Signalling:
alarm 1 LED yellow)long-time pick up)
Product Name:
PowerPact R
Halogen Content Performance:
Halogen free plastic parts product
Warranty:
18 months
Electrical Connection:
busbar connection, line || busbar connection, load
Wire Stripping Length:
35 mm
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Rohs Exemption Information:
Yes
Width:
16.53 in
Control Type:
operating handle
Line Rated Current:
2000-2000 A
Network Frequency:
50/60 Hz
Eu Rohs Directive:
Compliant with Exemptions
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Environmental Disclosure:
ENVPEP2206034EN
Product Certifications:
UL || CSA || NOM
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Continuous Current Rating:
0.8
Quantity Per Set:
1
Trip Unit Name:
MicroLogic 3.0
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Mercury Free:
Yes
Net Weight:
52 lb(US)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
