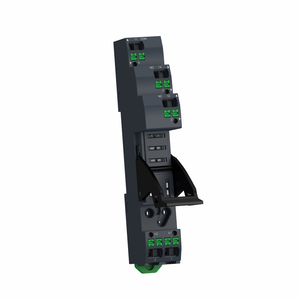

Schneider Electric RGZE08P Rgz Push-In Socket With Clamp For Rxg2
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
RGZ push-in relay socket is part of the Harmony Electromechanical relays range. This Harmony RGZ push-in relay socket has separate contact terminals. Its volatge is 5 A. It is compatible with all 2 C/O DPDT RXG relays. It also has a test button for easy debugging, testing and commissioning 0 0 0
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV between coil and contact with reinforced insulation || 4 kV between poles with basic insulation || 4 kV between terminals and DIN rail with basic insulation
- [Ue] Rated Operational Voltage:
- 250 V IEC || 300 V UL
- Product Or Component Type:
- socket
- [Ui] Rated Insulation Voltage:
- 250 V
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- III
- Width:
- 16 mm
- Connections - Terminals:
- spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end || spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end
- Contact Terminal Arrangement:
- separate
- Dielectric Strength:
- 5 kV between coil and contact with reinforced insulation || 3 kV between poles with basic insulation || 3 kV between terminals and DIN rail with basic insulation
- Reach Free Of Svhc:
- Yes
- Range Of Product:
- Harmony Electromechanical Relays
- Shape Of Pin:
- flat
- Product Certifications:
- CSA || UL || EAC || DNV-GL
- Toxic Heavy Metal Free:
- Yes
- Length:
- 98 mm
- Standards:
- IEC 61984
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Fixing Mode:
- clip-on 35 mm symmetrical DIN rail)
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Marking:
- CE
- Ip Degree Of Protection:
- IP20
- China Rohs Regulation:
- X
- Contacts Type And Composition:
- 2 C/O
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Height:
- 67 mm
- Pollution Degree:
- 3
- Ambient Air Temperature For Storage:
- -40-85 °C
- Device Short Name:
- RGZ
- Product Compatibility:
- plug-in relay RXG 2 C/O
- Net Weight:
- 0.042 kg
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
