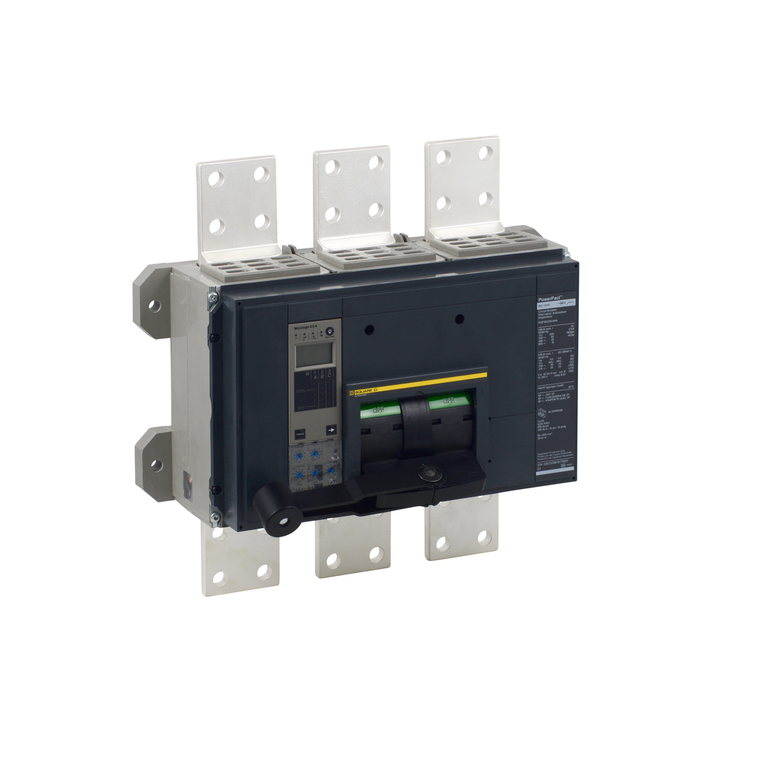

Schneider Electric RJF36160CU44A Molded Case Circuit Breaker 600V 1600A

Schneider Electric RJF36160CU44A Molded Case Circuit Breaker 600V 1600A

Schneider Electric
SKU:
RJF36160CU44A
|
UPC:
785901278962
$35,436.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. The circuit breaker has a continuous current rating of 100%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Height:
16.24 in
Mounting Mode:
unit mount busbar)
Net Weight:
52 lb(US)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Communication Interface:
Modbus
Electrical Connection:
busbar connection, line || busbar connection, load
[Ics] Rated Service Breaking Capacity:
35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Device Application:
distribution
Product Or Component Type:
circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Local Signalling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Ip Degree Of Protection:
IP40
Product Name:
PowerPact R
Line Rated Current:
1600-1600 A
Trip Unit Name:
MicroLogic 6.0 A
Pvc Free:
Yes
Pollution Degree:
3 IEC 60947-1
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Breaking Capacity Code:
J
Sustainable Offer Status:
Green Premium product
Product Certifications:
UL || CSA || NOM
Rohs Exemption Information:
Yes
Mounting Support:
busbar
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Operation:
-25-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Circularity Profile:
ENVEOLI2206034EN
Wire Stripping Length:
35 mm
Terminal Identifier:
AL2500RK
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.0 A, LSIG
Control Type:
operating handle
Warranty:
18 months
Continuous Current Rating:
1
Poles Description:
3P
Utilisation Category:
category A
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Quality Labels:
CE
Ambient Air Temperature For Storage:
-50-85 °C
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Suitability For Isolation:
yes IEC 60947-2
Mercury Free:
Yes
Quantity Per Set:
1
Depth:
14.49 in
Network Frequency:
50/60 Hz
Range:
PowerPact
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Halogen Content Performance:
Halogen free plastic parts product
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Environmental Disclosure:
ENVPEP2206034EN
Width:
16.53 in
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
