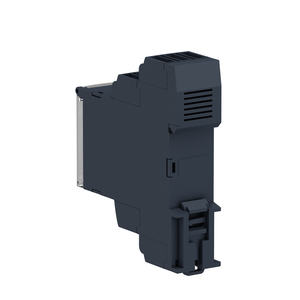

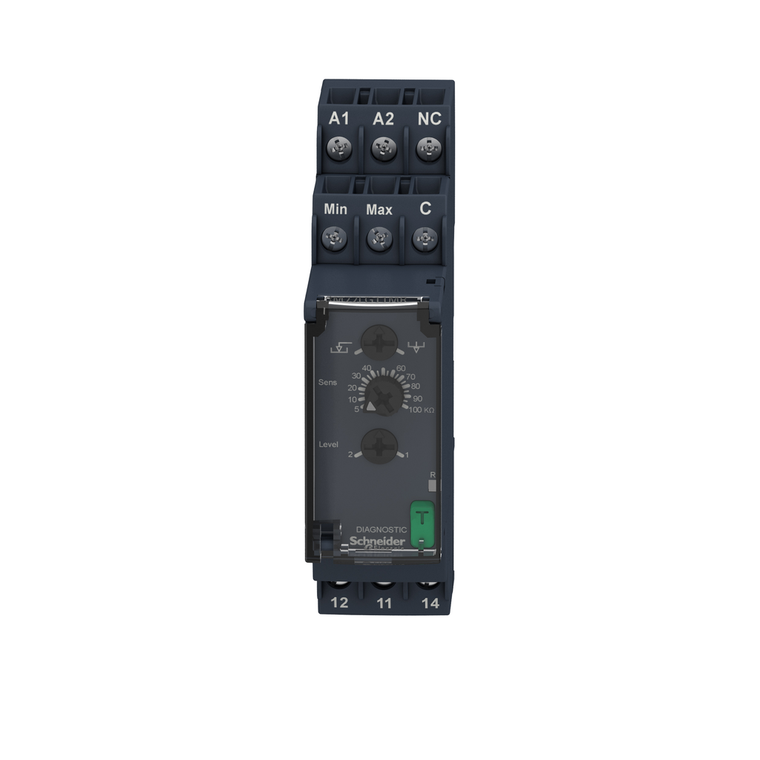

Schneider Electric RM22LG11MR Level Control Relay Rm22-Lg - Range 5K #
Schneider Electric
$52.45
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RM22-LG relay allows monitoring of liquid level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
- China Rohs Regulation:
- X
- Overvoltage Category:
- III IEC 60664-1
- Sensitivity Adjustment:
- 5-100 %
- [Us] Rated Supply Voltage:
- AC/DC non self-powered
- Mercury Free:
- Yes
- Electrical Durability:
- 100000 cycles
- Maximum Cable Distance Between Devices:
- 1000 m probe and delay
- Relative Humidity:
- 93-97 % 25-55 °C IEC 60068-2-30
- Maximum Switching Voltage:
- 250 V AC
- Minimum Switching Current:
- 10 mA 5 V DC
- Circularity Profile:
- ENVEOLI1504008EN
- Cable Capacitance:
- 1 nF HS (High Sensitivity) probe cable || 2.2 nF St (Standard Sensitivity) probe cable || 4.7 nF LS (Low Sensitivity) probe cable
- Safety Reliability Data:
- B10d = 120000 || MTTFd = 125.5 years
- Supply Voltage Limits:
- 20.4-264 V AC/DC
- Product Or Component Type:
- level control relay
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electromagnetic Compatibility:
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments
- Pollution Degree:
- 3 IEC 60664-1
- Range Of Product:
- Harmony Control Relays
- Time Delay Type:
- without
- Maximum Supply Current For Sensors:
- 1 mA
- Immunity To Microbreaks:
- 100 ms DC || 90 ms AC
- Maximum Electrode Voltage:
- 12 V AC
- Relay Name:
- RM22L
- Product Certifications:
- GL || RCM || CCC || CSA || UL || EAC || CE
- Contacts Material:
- cadmium free
- Measurement Range:
- 5...100 Ohm
- Relay Type:
- level control relay
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nominal Output Current:
- 0.333333333333333
- Dielectric Test Voltage:
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Width:
- 22.5 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Switching Capacity In Va:
- 2000 VA
- Maximum Power Consumption In W:
- 1.5 W DC
- Sustainable Offer Status:
- Green Premium product
- Vibration Resistance:
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Connections - Terminals:
- screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end |
- Contacts Type And Composition:
- 2 C/O
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Relay Monitored Parameters:
- detection by resistive probes
- Net Weight:
- 0.1 kg
- Mounting Position:
- any position
- Repeat Accuracy:
- +/- 2 % time delay
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Utilisation Category:
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- Run-Up Delay At Power-Up:
- 0.6 s
- Shock Resistance:
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Insulation:
- between supply and measurement
- Maximum Electrode Current:
- 1 mA
- Housing Material:
- self-extinguishing plastic
- Sensitivity Scale:
- 5...100 kOhm St (Standard Sensitivity)
- Output Contacts:
- 2 C/O
- Mechanical Durability:
- 10000000 cycles
- Maximum Switching Current:
- 8 A AC
- Measurement Error:
- < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
- Standards:
- IEC 60255-1
- Ip Degree Of Protection:
- IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Environmental Disclosure:
- ENVPEP1504008EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
