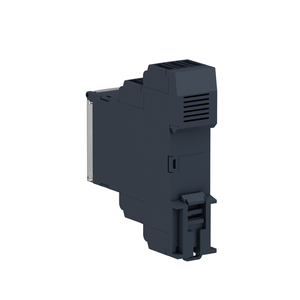

Schneider Electric RM22UA21MR Overvoltage Control Relay Rm22-Ua - Rang

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RM22UA21MR Overvoltage Control Relay Rm22-Ua - Rang

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RM22UA21MR

UPC:

3606480792205

MPN:

Condition:

New

Output Contacts:

2 C/O

Maximum Power Consumption In W:

1.5 W DC

Environmental Disclosure:

ENVPEP1504008EN

Safety Reliability Data:

B10d = 290000 || MTTFd = 308.2 years

Response Time:

<= 500 ms

Rohs Exemption Information:

Yes

Relay Name:

RM22UA

Shock Resistance:

15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Control Type:

with test button

Tightening Torque:

0.6-1 N.m IEC 60947-1

Mechanical Durability:

10000000 cycles

Relay Type:

voltage control relay

Sustainable Offer Status:

Green Premium product

Dielectric Test Voltage:

2.5 kV AC 50 Hz, 1 min IEC 60255-27

Measurement Range:

0.05...5 V voltage AC/DC 50/60 Hz

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Minimum Switching Current:

10 mA 5 V DC

Vibration Resistance:

0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Connections - Terminals:

screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end |

[Us] Rated Supply Voltage:

AC/DC non self-powered

Reset Time:

1500 ms at maximum voltage

Electrical Durability:

100000 cycles

Time Delay Type:

without

Range Of Product:

Harmony Control Relays

Switching Capacity In Va:

2000 VA

Contacts Type And Composition:

2 C/O

Overvoltage Category:

III IEC 60664-1

Net Weight:

0.11 kg

Maximum Switching Current:

8 A AC

Run-Up Delay At Power-Up:

600 ms

Pollution Degree:

3 IEC 60664-1

Power Consumption In Va:

3.5-3.5 VA AC

Width:

22.5 mm

Housing Material:

self-extinguishing plastic

Electromagnetic Compatibility:

immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments

Mounting Support:

35 mm DIN rail conforming to IEC 60715

Maximum Measuring Cycle:

100 ms measurement cycle as true rms value

Circularity Profile:

ENVEOLI1504008EN

Ambient Air Temperature For Operation:

-20-50 °C 60 Hz || -20-60 °C 50 Hz

Relative Humidity:

93-97 % 25-55 °C IEC 60068-2-30

Measurement Error:

< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation

Mercury Free:

Yes

Phase:

1 phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Compatibility Code:

RM22

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Utilisation Category:

AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Repeat Accuracy:

+/- 0.5 % input and measurement circuit

Contacts Material:

cadmium free

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Hysteresis:

5-50 % adjustable threshold setting

Maximum Switching Voltage:

250 V AC

Ambient Air Temperature For Storage:

-40-70 °C

Product Or Component Type:

voltage control relay

Ip Degree Of Protection:

IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

Immunity To Microbreaks:

10 ms

Insulation Resistance:

> 100 MOhm 500 V DC

Supply Voltage Limits:

20.4-264 V AC/DC

Relay Monitored Parameters:

overvoltage detection

Insulation:

between supply and measurement

Resistance Across Terminals:

30 kOhm E2-M terminals || 5 kOhm E1-M terminals || 50 kOhm E3-M terminals

Supply Circuit Type:

DC

Standards:

IEC 60255-1

Product Certifications:

UL || EAC || CSA || GL || CCC || RCM || CE
