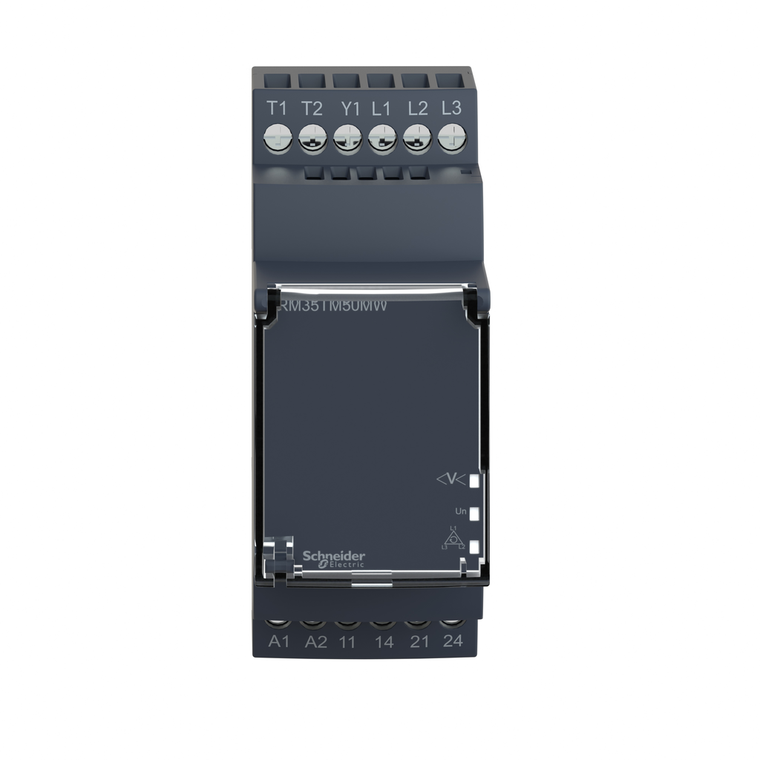

Schneider Electric RM35TM50MW Ph Fail Rotreset Motor Temp 24-240Vac/Dc

Schneider Electric RM35TM50MW Ph Fail Rotreset Motor Temp 24-240Vac/Dc

Schneider Electric
SKU:
RM35TM50MW
|
UPC:
3389119405287
$221.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RM35-T control relay allows monitoring of motor voltage and temperature control. This modular control relay is ideal for monitoring of electrical values with voltage and temperature variation in control of moving equipment's. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Electrical Durability:
10000 cycles
Control Circuit Frequency:
50...60 Hz +/- 10 %
Pollution Degree:
3 IEC 60664-1
Width:
35 mm
Dielectric Test Voltage:
2 kV AC 50 Hz, 1 min
Tripping Threshold:
3100 Ohm +/- 10 % temperature control circuit
Circularity Profile:
ENVEOLI1504008EN
Maximum Power Consumption In W:
0.5 W DC
Run-Up Delay At Power-Up:
500 ms
Product Or Component Type:
motor temperature control relay
Utilisation Category:
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
Immunity To Microbreaks:
20 ms 20.4 V
[Us] Rated Supply Voltage:
AC/DC non self-powered
Relay Name:
RM35TM
[Uc] Control Circuit Voltage:
24...240 V
Electromagnetic Compatibility:
emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to IEC 61000-6
Housing Material:
self-extinguishing plastic
Supply Frequency:
50/60 Hz +/- 10 %
Maximum Resistance:
1500 Ohm temperature sensor 20 °C
Time Delay Type:
without
Reset Threshold:
1650 Ohm +/- 10 % temperature control circuit
Ambient Air Temperature For Operation:
-20-50 °C
Shock Resistance:
15 gn 11 ms IEC 60255-21-1
Reset Time:
10000 ms output
Relay Monitored Parameters:
phase sequence || motor temperature via PTC probe || phase failure detection
Operating Position:
any position without derating
Product Certifications:
GL || UL || GOST || C-tick || CSA
Nominal Output Current:
0.208333333333333
Product Specific Application:
for 3-phase supply
Range Of Product:
Harmony Control Relays
Maximum Switching Current:
5 A AC || 5 A DC
Response Time:
> 50 ms (input Y1 (contact Y1-T1) and push-button)
Operating Rate:
<= 360 operations/hour full load
Mercury Free:
Yes
Vibration Resistance:
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Control Type:
without test button
Relative Humidity:
95-95 % 55-55 °C IEC 60068-2-30
Overvoltage Category:
III IEC 60664-1
Warranty:
18 months
Resistance Across Terminals:
602 mOhm
Relay Type:
motor temperature control relay
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Net Weight:
0.13 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Ip Degree Of Protection:
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Standards:
IEC 60255-6 || IEC 60034-11-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Measurement Range:
208...480 V voltage AC || 0...20 Ohm short-circuit detection
Contacts Type And Composition:
2 NO
Non-Dissipating Shock Wave:
4 kV
Mechanical Durability:
30000000 cycles
Mounting Support:
35 mm symmetrical DIN rail conforming to IEC 60715
Supply Voltage Limits:
20.4-264 V AC || 20.4-264 V DC
Switching Capacity In Va:
1250 VA
Sustainable Offer Status:
Green Premium product
Local Signalling:
for power ON LED (green) || for phase of relay (R2) LED (yellow) || for temperature of relay (R1) LED (yellow)
Rohs Exemption Information:
Yes
Directives:
73/23/EEC - low voltage directive || 89/336/EEC - electromagnetic compatibility
[Ui] Rated Insulation Voltage:
400 V IEC 60664-1
Power Consumption In Va:
0-4 VA 24...240 V AC
Tightening Torque:
0.6-1 N.m IEC 60947-1
Maximum Switching Voltage:
250 V AC || 250 V DC
Insulation Resistance:
> 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay ou
Short-Circuit Current:
0.007 A temperature sensing circuit T1-T2 terminals short circuited)
Minimum Switching Current:
10 mA 5 V DC
Environmental Disclosure:
ENVPEP1504008EN
Marking:
CE
Measurement Voltage Limits:
176-528 V AC
Connections - Terminals:
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end ||
[Uc] Control Circuit Voltage:
<= 3.6 V temperature control circuit T1-T2 terminals open)
Voltage Range:
176...528 V
Ambient Air Temperature For Storage:
-40-70 °C
Output Contacts:
2 NO
