Schneider Electric RPM41BD 15A Power Relay 4C/O 24Vdc Pack of 10

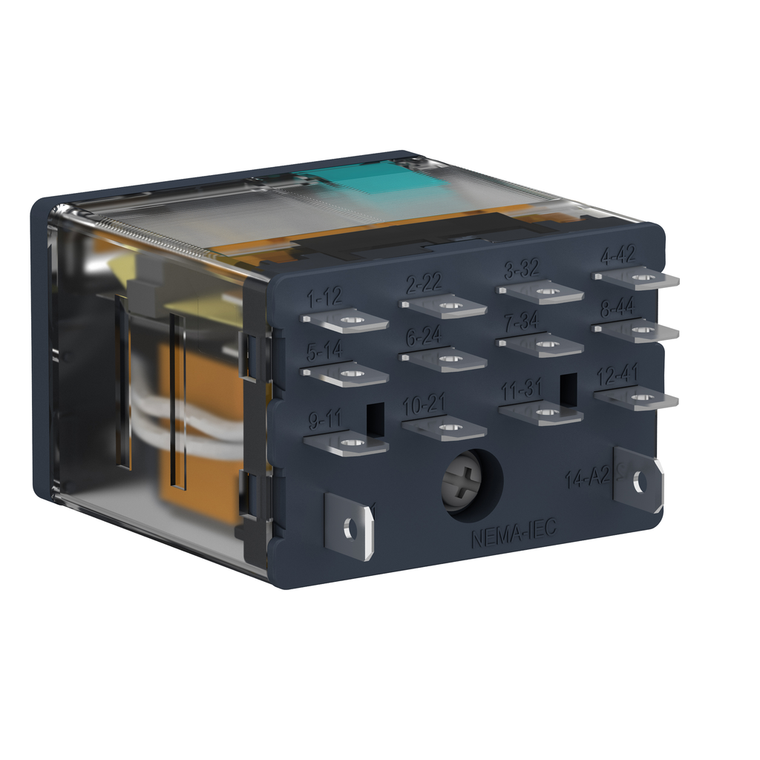

This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0
- Shape Of Pin:
- flat
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Range Of Product:
- Harmony Electromechanical Relays
- Ambient Air Temperature For Operation:
- -40-55 °C
- Reset Time:
- 20 ms at nominal voltage
- Sustainable Offer Status:
- Green Premium product
- Contacts Type And Composition:
- 4 C/O
- Device Short Name:
- RPM
- Product Or Component Type:
- plug-in relay
- [Ithe] Conventional Enclosed Thermal Current:
- 15 A -40-55 °C
- [Uc] Control Circuit Voltage:
- 24 V DC
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Status Led:
- without
- Operating Time:
- 20 ms at nominal voltage
- Device Presentation:
- complete product
- Mechanical Durability:
- 10000000 cycles
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- China Rohs Regulation:
- X
- Protection Category:
- RT I
- Test Levels:
- level A group mounting
- Safety Reliability Data:
- B10d = 100000
- Product Certifications:
- EAC || CSA || UL
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP1406038EN
- Rated Operational Voltage Limits:
- 19.2...26.4 V DC
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Maximum Switching Capacity:
- 3750 VA || 420 W
- Utilisation Coefficient:
- 0.2
- Operating Position:
- any position
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Pollution Degree:
- 3
- Average Resistance:
- 303 Ohm at 20 °C +/- 10 %
- Series Name:
- Power
- Control Type:
- lockable test button
- Warranty:
- 18 months
- Load Current:
- 15 A 250 V AC || 15 A 28 V DC
- Average Coil Consumption:
- 1.6 W
- Net Weight:
- 0.071 kg
- Ambient Air Temperature For Storage:
- -40-85 °C
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Maximum Switching Voltage:
- 250 V IEC
- Contacts Material:
- AgNi
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ie] Rated Operational Current:
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Reach Free Of Svhc:
- Yes
- Shock Resistance:
- 15 gnin operation || 30 gnnot operating
- Electrical Durability:
- 100000 cycles resistive
- Circularity Profile:
- N/A
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
