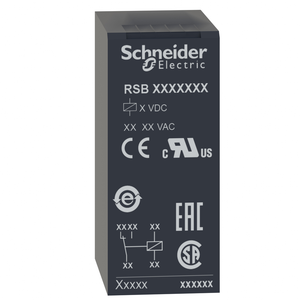

Schneider Electric RSB1A120B7 Pcb Relay 1C/O 12A 24Vac
This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V AC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Marking:
- CE
- Product Certifications:
- EAC || UL || CSA
- Rohs Exemption Information:
- Yes
- Operating Rate:
- <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation:
- X
- Shock Resistance:
- 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Test Levels:
- level A group mounting
- Electrical Durability:
- 100000 cycles, 12 A at 250 V, AC-1 NO || 100000 cycles, 6 A at 250 V, AC-1 NC
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Device Presentation:
- complete product
- [Ie] Rated Operational Current:
- 12 A AC-1/DC-1) NO IEC || 6 A AC-1/DC-1) NC IEC
- Mechanical Durability:
- 10000000 cycles
- Contact Operation:
- standard
- Series Name:
- interface relay
- Status Led:
- without
- Device Short Name:
- RSB
- Average Coil Consumption:
- 0.75 VA AC
- Minimum Switching Capacity:
- 120 mW 10 mA, 12 V
- [Ue] Rated Operational Voltage:
- 19.2...36 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage:
- 3.6 kV IEC 61000-4-5
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Environmental Disclosure:
- ENVPEP1406006EN
- Sustainable Offer Status:
- Green Premium product
- Vibration Resistance:
- +/- 1 mm 10-55 Hz)IEC 60068-2-6
- Operating Time:
- 20 ms operating || 20 ms reset
- Range Of Product:
- Harmony Electromechanical Relays
- [Ithe] Conventional Enclosed Thermal Current:
- 12 A -40-40 °C
- Load Current:
- 12 A 250 V AC || 12 A 28 V DC
- Warranty:
- 18 months
- Maximum Switching Capacity:
- 3000 VA/336 W
- Net Weight:
- 0.014 kg
- Ambient Air Temperature For Operation:
- -40-70 °C AC)
- Safety Reliability Data:
- B10d = 100000
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ui] Rated Insulation Voltage:
- 400 V IEC 60947
- Maximum Switching Voltage:
- 300 V DC IEC
- Product Or Component Type:
- plug-in relay
- Dielectric Strength:
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Sale Per Indivisible Quantity:
- 10
- Contacts Type And Composition:
- 1 C/O
- Toxic Heavy Metal Free:
- Yes
- Control Type:
- without push-button
- Shape Of Pin:
- flat (PCB type)
- Protection Category:
- RT I
- Contacts Material:
- silver alloy (AgNi)
- Ambient Air Temperature For Storage:
- -40-85 °C
- Average Resistance:
- 368 Ohm AC 20 °C +/- 10 %
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Switching Voltage:
- 12 V
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Mercury Free:
- Yes
- Minimum Switching Current:
- 10 mA
- Operating Position:
- any position
- Circularity Profile:
- N/A
