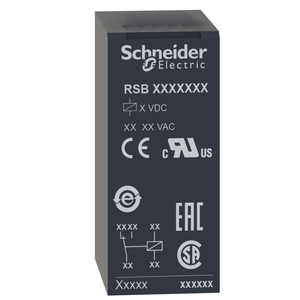

Schneider Electric RSB1A120M7 Pcb Relay 1C/O 12A 220Vac Pack of 10

Schneider Electric RSB1A120M7 Pcb Relay 1C/O 12A 220Vac Pack of 10

Schneider Electric
SKU:
RSB1A120M7
|
UPC:
3389110257267
Availability:
Contact us to confirm availability and lead times.
$42.70
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RSB interfacing plug-in relay has a control coil voltage of 220V AC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Operating Position:
any position
Contacts Type And Composition:
1 C/O
Operating Rate:
<= 600 cycles/hour under load || <= 18000 cycles/hour no-load
[Uc] Control Circuit Voltage:
220 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage:
3.6 kV IEC 61000-4-5
Drop-Out Voltage Threshold:
>= 0.15 Uc AC
Dielectric Strength:
1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile:
N/A
Toxic Heavy Metal Free:
Yes
Maximum Switching Voltage:
300 V DC IEC
Minimum Switching Current:
10 mA
Warranty:
18 months
Product Certifications:
CSA || EAC || UL
Mercury Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Presentation:
complete product
Shape Of Pin:
flat (PCB type)
Contacts Material:
silver alloy (AgNi)
Ambient Air Temperature For Storage:
-40-85 °C
Control Type:
without push-button
[Ithe] Conventional Enclosed Thermal Current:
12 A -40-40 °C
Contact Operation:
standard
Environmental Disclosure:
ENVPEP1406006EN
Product Or Component Type:
plug-in relay
[Ie] Rated Operational Current:
12 A AC-1/DC-1) NO IEC || 6 A AC-1/DC-1) NC IEC
Vibration Resistance:
+/- 1 mm 10-55 Hz)IEC 60068-2-6
Device Short Name:
RSB
Switching Voltage:
12 V
Rohs Exemption Information:
Yes
Sale Per Indivisible Quantity:
10
[Ue] Rated Operational Voltage:
176...330 V AC 50/60 Hz
Standards:
IEC 61810-1 || UL 508 || CSA C22.2 No 14
Safety Reliability Data:
B10d = 100000
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Average Resistance:
33000 Ohm AC 20 °C +/- 10 %
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Load Current:
12 A 250 V AC || 12 A 28 V DC
[Ui] Rated Insulation Voltage:
400 V IEC 60947
Series Name:
interface relay
Ambient Air Temperature For Operation:
-40-70 °C AC)
Status Led:
without
Shock Resistance:
10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Average Coil Consumption:
0.75 VA AC
Minimum Switching Capacity:
120 mW 10 mA, 12 V
Test Levels:
level A group mounting
Net Weight:
0.014 kg
Maximum Switching Capacity:
3000 VA/336 W
Operating Time:
20 ms operating || 20 ms reset
Protection Category:
RT I
Sustainable Offer Status:
Green Premium product
Mechanical Durability:
10000000 cycles
Range Of Product:
Harmony Electromechanical Relays
Electrical Durability:
100000 cycles, 12 A at 250 V, AC-1 NO || 100000 cycles, 6 A at 250 V, AC-1 NC
China Rohs Regulation:
X
