Schneider Electric RSB2A080B7 Pcb Relay 2C/O 8A 24Vac Pack of 10

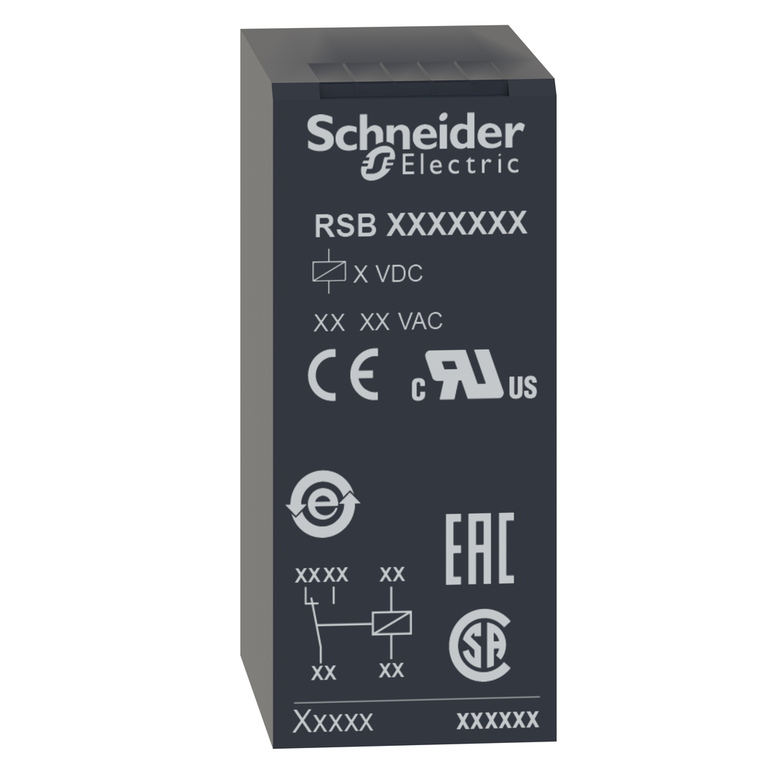

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V AC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
- [Ui] Rated Insulation Voltage:
- 400 V IEC 60947
- Range Of Product:
- Harmony Electromechanical Relays
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Maximum Switching Capacity:
- 2000 VA/224 W
- Product Certifications:
- UL || CSA || EAC
- China Rohs Regulation:
- X
- Operating Position:
- any position
- [Uimp] Rated Impulse Withstand Voltage:
- 3.6 kV IEC 61000-4-5
- Load Current:
- 8 A 250 V AC || 8 A 28 V DC
- Minimum Switching Capacity:
- 120 mW 10 mA, 12 V
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 10
- Switching Voltage:
- 12 V
- Minimum Switching Current:
- 10 mA
- Test Levels:
- level A group mounting
- Product Or Component Type:
- plug-in relay
- Contact Operation:
- standard
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C AC)
- Protection Category:
- RT I
- Average Coil Consumption:
- 0.75 VA AC
- Mechanical Durability:
- 5000000 cycles
- Net Weight:
- 0.014 kg
- Contacts Type And Composition:
- 2 C/O
- Electrical Durability:
- 100000 cycles, 8 A at 250 V, AC-1 NO || 100000 cycles, 4 A at 250 V, AC-1 NC
- [Ue] Rated Operational Voltage:
- 19.2...36 V AC 50/60 Hz
- Mercury Free:
- Yes
- Series Name:
- interface relay
- Maximum Switching Voltage:
- 300 V DC IEC
- [Ie] Rated Operational Current:
- 4 A AC-1/DC-1) NC IEC || 8 A AC-1/DC-1) NO IEC
- Circularity Profile:
- N/A
- Environmental Disclosure:
- ENVPEP1406006EN
- Warranty:
- 18 months
- Safety Reliability Data:
- B10d = 100000
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Short Name:
- RSB
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Status Led:
- without
- Device Presentation:
- complete product
- Dielectric Strength:
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Average Resistance:
- 368 Ohm AC 20 °C +/- 10 %
- Vibration Resistance:
- +/- 1 mm 10-55 Hz)IEC 60068-2-6
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -40-85 °C
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Shape Of Pin:
- flat (PCB type)
- [Ithe] Conventional Enclosed Thermal Current:
- 8 A -40-40 °C
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Contacts Material:
- silver alloy (AgNi)
- Shock Resistance:
- 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Control Type:
- without push-button
- Toxic Heavy Metal Free:
- Yes
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Operating Rate:
- <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time:
- 20 ms operating || 20 ms reset
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
