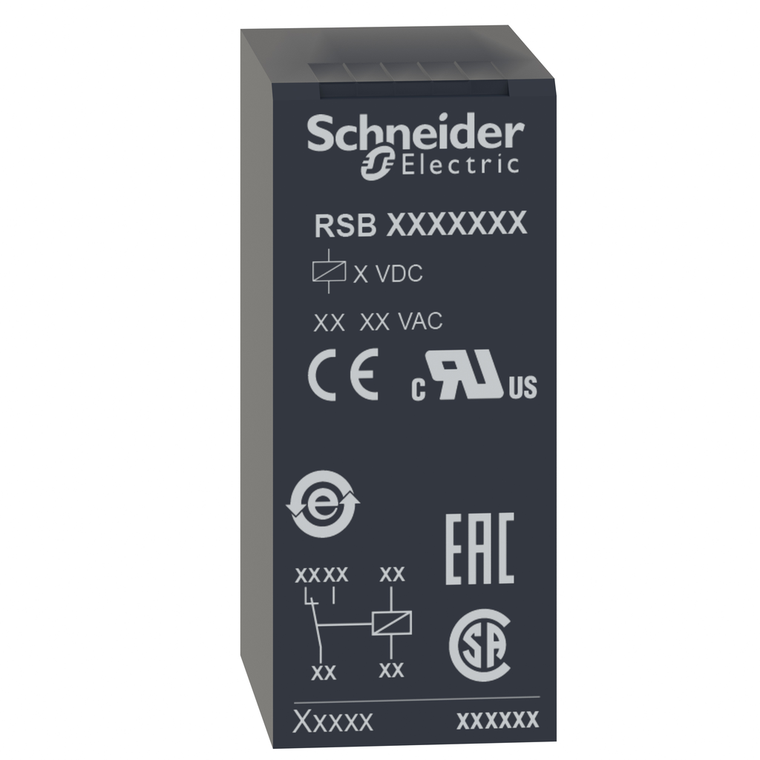

Schneider Electric RSB2A080E7 Pcb Relay 2C/O 8A 48Vac Pack of 10

Schneider Electric RSB2A080E7 Pcb Relay 2C/O 8A 48Vac Pack of 10

Schneider Electric
SKU:
RSB2A080E7
|
UPC:
3389110255959
$51.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony RSB interfacing plug-in relay has a control coil voltage of 48V AC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Switching Voltage:
12 V
Warranty:
18 months
Test Levels:
level A group mounting
Product Certifications:
UL || CSA || EAC
Marking:
CE
Status Led:
without
Maximum Switching Capacity:
2000 VA/224 W
Protection Category:
RT I
[Ithe] Conventional Enclosed Thermal Current:
8 A -40-40 °C
Rohs Exemption Information:
Yes
Drop-Out Voltage Threshold:
>= 0.15 Uc AC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operating Rate:
<= 600 cycles/hour under load || <= 18000 cycles/hour no-load
Device Presentation:
complete product
Vibration Resistance:
+/- 1 mm 10-55 Hz)IEC 60068-2-6
Circularity Profile:
N/A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
400 V IEC 60947
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Environmental Disclosure:
ENVPEP1406006EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Minimum Switching Capacity:
120 mW 10 mA, 12 V
[Uc] Control Circuit Voltage:
48 V AC 50/60 Hz
Load Current:
8 A 250 V AC || 8 A 28 V DC
Electrical Durability:
100000 cycles, 8 A at 250 V, AC-1 NO || 100000 cycles, 4 A at 250 V, AC-1 NC
Maximum Switching Voltage:
300 V DC IEC
[Uimp] Rated Impulse Withstand Voltage:
3.6 kV IEC 61000-4-5
Mechanical Durability:
5000000 cycles
Shape Of Pin:
flat (PCB type)
Contacts Type And Composition:
2 C/O
Product Or Component Type:
plug-in relay
Standards:
UL 508 || IEC 61810-1 || CSA C22.2 No 14
Net Weight:
0.014 kg
Range Of Product:
Harmony Electromechanical Relays
Sustainable Offer Status:
Green Premium product
Operating Time:
20 ms operating || 20 ms reset
Safety Reliability Data:
B10d = 100000
Shock Resistance:
10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Contact Operation:
standard
Toxic Heavy Metal Free:
Yes
Ambient Air Temperature For Operation:
-40-70 °C AC)
Minimum Switching Current:
10 mA
Operating Position:
any position
Average Coil Consumption:
0.75 VA AC
Series Name:
interface relay
Ip Degree Of Protection:
IP40 conforming to IEC 60529
[Ie] Rated Operational Current:
4 A AC-1/DC-1) NC IEC || 8 A AC-1/DC-1) NO IEC
[Ue] Rated Operational Voltage:
38.4...72 V AC 50/60 Hz
Average Resistance:
1540 Ohm AC 20 °C +/- 10 %
China Rohs Regulation:
X
Device Short Name:
RSB
Dielectric Strength:
1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
Ambient Air Temperature For Storage:
-40-85 °C
Contacts Material:
silver alloy (AgNi)
Control Type:
without push-button
Sale Per Indivisible Quantity:
10
