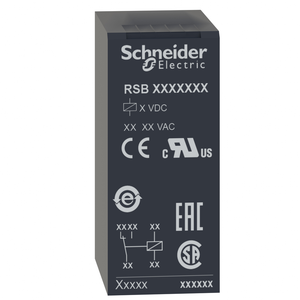

Schneider Electric RSB2A080FD Pcb Relay 2C/O 8A 110Vdc Pack of 10

Schneider Electric RSB2A080FD Pcb Relay 2C/O 8A 110Vdc Pack of 10

Schneider Electric
SKU:
RSB2A080FD
|
UPC:
3389110253375
Availability:
Contact us to confirm availability and lead times.
$51.20
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RSB interfacing plug-in relay has a control coil voltage of 110V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Product Or Component Type:
plug-in relay
Range Of Product:
Harmony Electromechanical Relays
[Ui] Rated Insulation Voltage:
400 V IEC 60947
Status Led:
without
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ithe] Conventional Enclosed Thermal Current:
8 A -40-40 °C
Mechanical Durability:
30000000 cycles
Test Levels:
level A group mounting
Drop-Out Voltage Threshold:
>= 0.1 Uc DC
Product Certifications:
UL || CSA || EAC
[Ie] Rated Operational Current:
4 A AC-1/DC-1) NC IEC || 8 A AC-1/DC-1) NO IEC
Dielectric Strength:
1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
Operating Position:
any position
Device Presentation:
complete product
Average Resistance:
30250 Ohm AC 20 °C +/- 10 %
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Marking:
CE
Toxic Heavy Metal Free:
Yes
Shape Of Pin:
flat (PCB type)
[Ue] Rated Operational Voltage:
77...165 V DC
Electrical Durability:
100000 cycles, 8 A at 250 V, AC-1 NO || 100000 cycles, 4 A at 250 V, AC-1 NC
Switching Voltage:
12 V
Environmental Disclosure:
ENVPEP1406006EN
Series Name:
interface relay
Net Weight:
0.014 kg
Ambient Air Temperature For Operation:
-40-85 °C DC)
Warranty:
18 months
Contacts Type And Composition:
2 C/O
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uc] Control Circuit Voltage:
110 V DC
Operating Rate:
<= 600 cycles/hour under load || <= 18000 cycles/hour no-load
Standards:
IEC 61810-1 || CSA C22.2 No 14 || UL 508
China Rohs Regulation:
X
Safety Reliability Data:
B10d = 100000
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Minimum Switching Capacity:
120 mW 10 mA, 12 V
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-40-85 °C
Maximum Switching Capacity:
2000 VA/224 W
Contact Operation:
standard
Protection Category:
RT I
Minimum Switching Current:
10 mA
Sale Per Indivisible Quantity:
10
Contacts Material:
silver alloy (AgNi)
Device Short Name:
RSB
Operating Time:
20 ms operating || 20 ms reset
Control Type:
without push-button
Maximum Switching Voltage:
300 V DC IEC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Shock Resistance:
10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
[Uimp] Rated Impulse Withstand Voltage:
3.6 kV IEC 61000-4-5
Circularity Profile:
N/A
Load Current:
8 A 250 V AC || 8 A 28 V DC
Vibration Resistance:
+/- 1 mm 10-55 Hz)IEC 60068-2-6
Average Coil Consumption:
0.45 W DC
