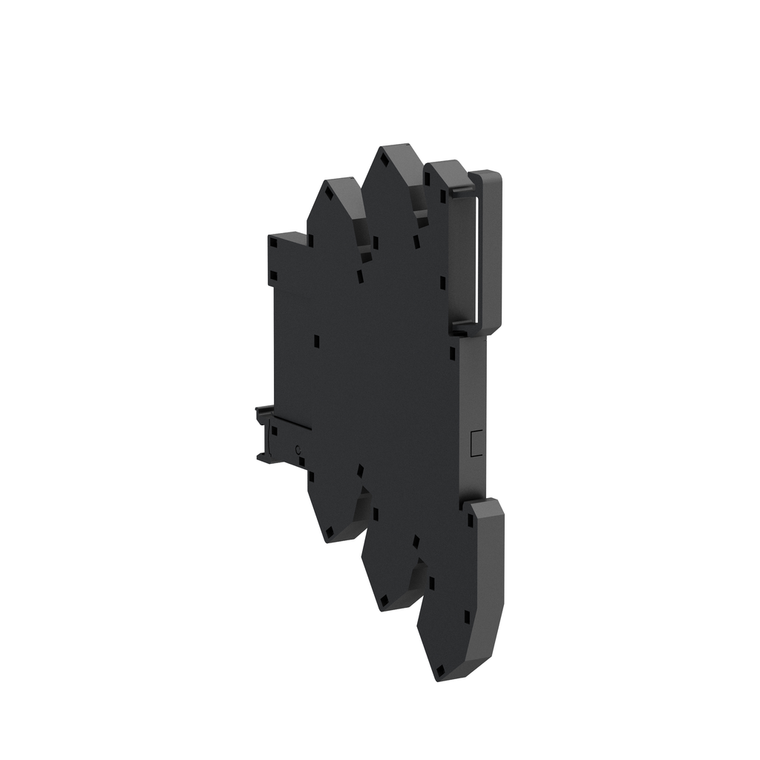

Schneider Electric RSL1PREU Slim Relay+Socket 1C/O Led 48Vac/Dc Sprg Pack of 10
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 48V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0
- Depth:
- 101 mm
- Sale Per Indivisible Quantity:
- 10
- Fixing Mode:
- plastic compression spring
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 5 gn 11 ms) not operating IEC 60068-2-27
- Drop-Out Voltage Threshold:
- >= 0.05 Uc
- Product Or Component Type:
- pre-assembled plug-in relay with socket
- Mercury Free:
- Yes
- Average Coil Consumption:
- 0.17 W, DC
- Width:
- 6.2 mm
- Ambient Air Temperature For Storage:
- -40-85 °C
- Contacts Material:
- silver alloy (AgSnO2)
- Sustainable Offer Status:
- Green Premium product
- Vibration Resistance:
- 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6 || 5 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Load Current:
- 6 A 250 V AC 0.5 mm mounting distance
- Phenolic Free Solution:
- Yes
- Device Short Name:
- RSL
- Test Levels:
- level A group mounting
- Series Name:
- interface relay
- Minimum Switching Capacity:
- 120 mW
- Operating Rate:
- <= 72000 cycles/hour no-load || <= 360 cycles/hour under load
- Operating Time:
- 5 ms reset || 12 ms
- Maximum Switching Voltage:
- 277 V
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Contact Operation:
- standard
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1405004EN
- Mechanical Durability:
- 10000000 cycles
- Net Weight:
- 0.029 kg
- Average Resistance:
- 10600 Ohm DC 23 °C +/- 10 %
- Status Led:
- with
- Minimum Switching Current:
- 100 mA
- Mounting Support:
- 35 mm symmetrical DIN rail
- [Uc] Control Circuit Voltage:
- 48 V DC
- Connections - Terminals:
- spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
- Device Presentation:
- complete product
- Ambient Air Temperature For Operation:
- -40-55 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Contacts Type And Composition:
- 1 C/O
- [Ithe] Conventional Enclosed Thermal Current:
- 6 A -40-55 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony Electromechanical Relays
- Protection Category:
- RT III
- Clamping Force:
- 10-40 N
- Electrical Durability:
- 60000 cycles resistive, 6 A 250 V, AC-1
- Safety Reliability Data:
- B10d = 60000
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Control Type:
- without push-button
- Contact Terminal Arrangement:
- separate
- Terminals Description Iso N°1:
- (11-12-14)OC || (A1-A2)CO
- [Ie] Rated Operational Current:
- 6 A 1 C/O AC-1/DC-1)IEC/UL
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Shape Of Pin:
- flat (PCB type)
- Operating Position:
- any position
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 277 V cUL
- Height:
- 78.6 mm
- Product Certifications:
- GOST || CSA || UL
- Toxic Free:
- Yes
- Marking:
- CE
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC
- Warranty:
- 18 months
- Maximum Switching Capacity:
- 1500 VA || 150 W
- Environmental Disclosure:
- ENVPEP1405004EN
- Minimum Switching Voltage:
- 12 V
- Input Voltage:
- 48 V AC/DC 43.2...57.6 V)
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Dielectric Strength:
- 1000 V AC between contacts || 4000 V AC between coil and contact
