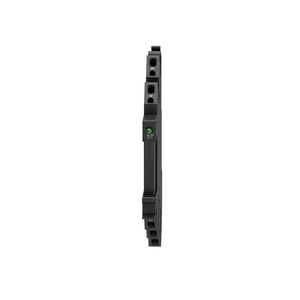

Schneider Electric RSL1PRJU Slim Relay+Socket 1C/O Led 12Vac/Dc Sprg Pack of 10
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0
- Maximum Switching Capacity:
- 1500 VA || 150 W
- Contacts Material:
- silver alloy (AgSnO2)
- Operating Rate:
- <= 72000 cycles/hour no-load || <= 360 cycles/hour under load
- Minimum Switching Capacity:
- 120 mW
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Average Resistance:
- 848 Ohm DC 23 °C +/- 10 %
- Minimum Switching Voltage:
- 12 V
- Mechanical Durability:
- 10000000 cycles
- Operating Position:
- any position
- Vibration Resistance:
- 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6 || 5 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
- Shape Of Pin:
- flat (PCB type)
- Device Short Name:
- RSL
- Toxic Heavy Metal Free:
- Yes
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 5 gn 11 ms) not operating IEC 60068-2-27
- Operating Time:
- 5 ms reset || 12 ms
- Mounting Support:
- 35 mm symmetrical DIN rail
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1405004EN
- Product Certifications:
- CSA || UL || GOST
- [Uc] Control Circuit Voltage:
- 12 V DC
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC
- Clamping Force:
- 10-40 N
- Series Name:
- interface relay
- Connections - Terminals:
- spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contact Operation:
- standard
- Status Led:
- with
- Marking:
- CE
- Safety Reliability Data:
- B10d = 60000
- Phenolic Free Solution:
- Yes
- Product Or Component Type:
- pre-assembled plug-in relay with socket
- Circularity Profile:
- ENVEOLI1405004EN
- Control Type:
- without push-button
- Width:
- 6.2 mm
- Mercury Free:
- Yes
- [Ithe] Conventional Enclosed Thermal Current:
- 6 A -40-55 °C
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 277 V cUL
- Input Voltage:
- 12 V AC/DC 11.4...14.4 V)
- Reach Free Of Svhc:
- Yes
- Depth:
- 101 mm
- Protection Category:
- RT III
- Load Current:
- 6 A 250 V AC 0.5 mm mounting distance
- Electrical Durability:
- 60000 cycles resistive, 6 A 250 V, AC-1
- Height:
- 78.6 mm
- Net Weight:
- 0.029 kg
- Drop-Out Voltage Threshold:
- >= 0.05 Uc
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Minimum Switching Current:
- 100 mA
- Sale Per Indivisible Quantity:
- 10
- Average Coil Consumption:
- 0.17 W, DC
- Contact Terminal Arrangement:
- separate
- Terminals Description Iso N°1:
- (A1-A2)CO || (11-12-14)OC
- Toxic Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-85 °C
- Ambient Air Temperature For Operation:
- -40-55 °C
- Dielectric Strength:
- 1000 V AC between contacts || 4000 V AC between coil and contact
- Contacts Type And Composition:
- 1 C/O
- Fixing Mode:
- plastic compression spring
- Test Levels:
- level A group mounting
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- [Ie] Rated Operational Current:
- 6 A 1 C/O AC-1/DC-1)IEC/UL
- Range Of Product:
- Harmony Electromechanical Relays
- Device Presentation:
- complete product
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Maximum Switching Voltage:
- 277 V
