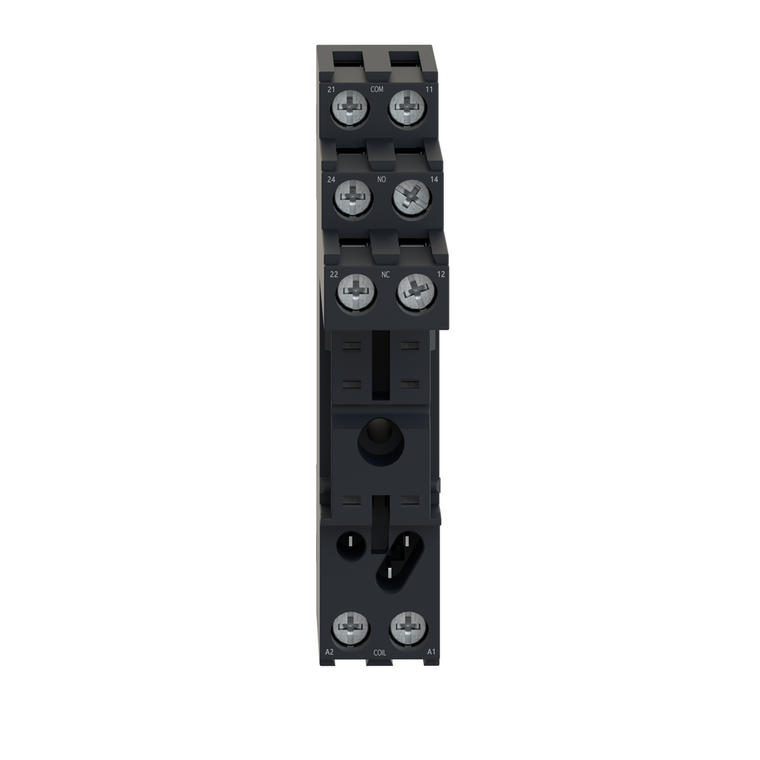

Schneider Electric RSZE1S48M Separated Conn Socket For Rsb Pack of 10

Schneider Electric RSZE1S48M Separated Conn Socket For Rsb Pack of 10

Schneider Electric
SKU:
RSZE1S48M
|
UPC:
3389110260083
Availability:
Contact us to confirm availability and lead times.
$64.70
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RSB plug-in socket has a rated voltage of 250V AC with an output rating of 10A." "This plug-in relay socket is compatible with interface plug-in relay RSB range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
Additional Information
Toxic Heavy Metal Free:
Yes
Product Compatibility:
plug-in relay RSB with 2 C/O contact at 8 A || plug-in relay RSB with 1 C/O contact at 16 A
Net Weight:
0.05 kg
Device Short Name:
RSZ
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Reach Free Of Svhc:
Yes
Environmental Disclosure:
ENVPEP1406006EN
Product Or Component Type:
socket
Rohs Exemption Information:
Yes
Warranty:
18 months
Contacts Type And Composition:
2 C/O
[Uimp] Rated Impulse Withstand Voltage:
3.6 kV
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Connections - Terminals:
screw connectors, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || screw connectors, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || screw connectors, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable en
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
[Ue] Rated Operational Voltage:
< 250 V AC
Contact Terminal Arrangement:
separate
Standards:
IEC 61984
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Operation:
-25-85 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Overvoltage Category:
III
Marking:
CE
Fixing Mode:
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Sale Per Indivisible Quantity:
10
Ambient Air Temperature For Storage:
-40-85 °C
Shape Of Pin:
flat
Range Of Product:
Harmony Electromechanical Relays
China Rohs Regulation:
X
Pollution Degree:
3
Width:
15.5 mm
Product Certifications:
CSA || UL
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Circularity Profile:
N/A
Tightening Torque:
< 0.8 N.m M3
