Schneider Electric RUZSC3M Separated Conn Socket For Rumc3 Pack of 10

Schneider Electric RUZSC3M Separated Conn Socket For Rumc3 Pack of 10

Schneider Electric
SKU:
RUZSC3M
|
UPC:
3389119403238
Availability:
Contact us to confirm availability and lead times.
$61.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

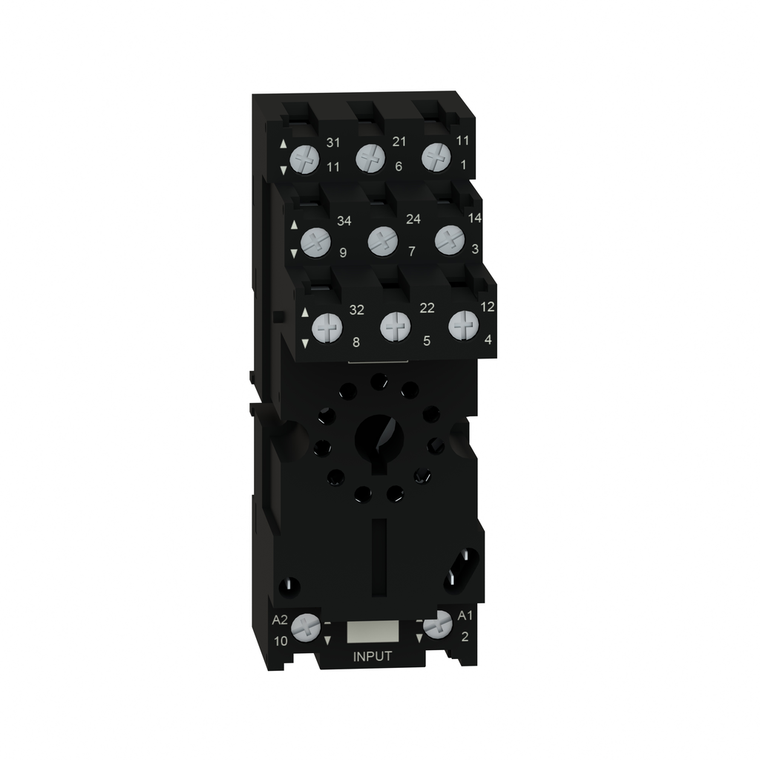

This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
Additional Information
Tightening Torque:
< 1 N.m M3.5
[Ue] Rated Operational Voltage:
< 250 V
Contacts Type And Composition:
3 C/O
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Product Certifications:
CSA || UL
Fixing Mode:
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Ambient Air Temperature For Operation:
-40-55 °C
[Ith] Conventional Free Air Thermal Current:
0
Product Or Component Type:
socket
Ambient Air Temperature For Storage:
-40-85 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
4 kV
China Rohs Regulation:
X
Sale Per Indivisible Quantity:
10
Overvoltage Category:
III
Reach Free Of Svhc:
Yes
Marking:
CE
Net Weight:
0.1 kg
Product Compatibility:
plug-in relay RUM 3 C/O
Device Short Name:
RUZ
Circularity Profile:
N/A
Range Of Product:
Harmony Electromechanical Relays
Pollution Degree:
3
Rohs Exemption Information:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Disclosure:
ENVPEP1511021EN
Standards:
IEC 61984
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Connections - Terminals:
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0
Shape Of Pin:
cylindrical
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Contact Terminal Arrangement:
separate
Width:
36 mm
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
IP20 conforming to IEC 60529
