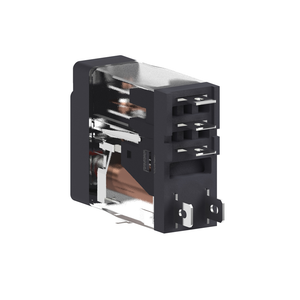

Schneider Electric RXG13B7 1Co 10A Relay-Ltb+Led 24Vac
Schneider Electric
$9.70
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
- Overvoltage Category:
- III
- Mounting Position:
- any position
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Circularity Profile:
- N/A
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Pollution Degree:
- 2
- Reach Free Of Svhc:
- Yes
- Relative Humidity:
- 10-85 %
- Rohs Exemption Information:
- Yes
- Minimum Switching Capacity:
- 500 mW at 100 mA, 5 V DC
- Control Circuit Voltage Limits:
- 0.8...1.1 Uc AC
- Device Short Name:
- RXG
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Maximum Switching Capacity:
- 2500 VA
- Ambient Air Temperature For Operation:
- -40-70 °C
- Contacts Type And Composition:
- 1 C/O
- Load Current:
- 10 A 250 V AC
- Average Consumption:
- 0.82 VA 60 Hz
- Sustainable Offer Status:
- Green Premium product
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Or Component Type:
- plug-in relay
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Net Weight:
- 0.02 kg
- Local Signalling:
- flag
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Safety Reliability Data:
- B10d = 100000
- Series Name:
- interface relay
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- EAC || CSA || UL || CE || DNV-GL
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Mechanical Durability:
- 10000000 cycles
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- Ambient Air Temperature For Storage:
- -40-85 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Status Led:
- with
- Test Levels:
- level A group mounting
- Protection Category:
- RT I
- Ip Degree Of Protection:
- IP40
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
- Torque Value:
- 0.8 N.m
- [Ie] Rated Operational Current:
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Resistance:
- 260 Ohm +/- 10 %
- Environmental Disclosure:
- ENVPEP1406006EN
- Colour Of Cover:
- standard
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Device Presentation:
- complete product
- Utilisation Coefficient:
- 0.2
- Range Of Product:
- Harmony Electromechanical Relays
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
