Schneider Electric RXM2AB1B7 Miniature Relay 2C/O 24Vac Pack of 10

Schneider Electric RXM2AB1B7 Miniature Relay 2C/O 24Vac Pack of 10

Schneider Electric
SKU:
RXM2AB1B7
|
UPC:
3389119403382
$64.70
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

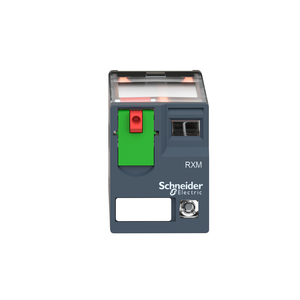

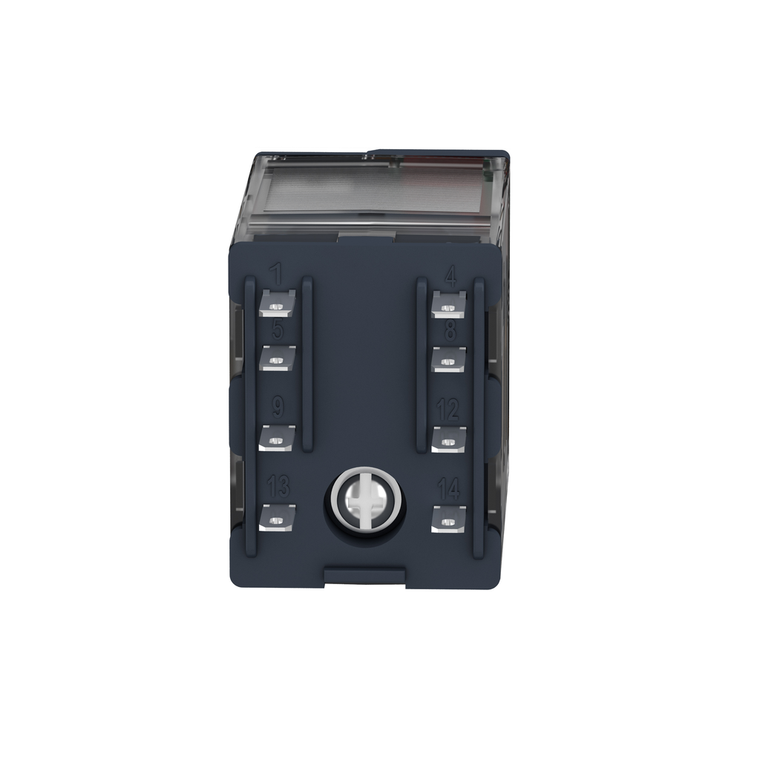

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 24 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Additional Information
Average Consumption:
1.2 VA 60 Hz
Control Type:
lockable test button
Average Coil Consumption In Va:
1.2-1.2 60 Hz
Average Resistance:
180 Ohm 20 °C +/- 15 %
Drop-Out Voltage Threshold:
>= 0.15 Uc
Continuous Output Current:
0.416666666666667
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
Device Presentation:
complete product
Maximum Switching Capacity:
3000 VA/336 W
Status Led:
without
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rated Operational Voltage Limits:
19.2...26.4 V AC
Net Weight:
0.037 kg
Standards:
IEC 61810-1 || CSA C22.2 No 14 || UL 508
Mercury Free:
Yes
Safety Reliability Data:
B10d = 100000
[Ie] Rated Operational Current:
12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
Reach Free Of Svhc:
Yes
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Product Or Component Type:
plug-in relay
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs
Ambient Air Temperature For Storage:
-40-85 °C
Device Short Name:
RXM
Load Current:
12 A 250 V AC || 12 A 28 V DC
Circularity Profile:
ENVEOLI2106019EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Warranty:
18 months
Maximum Switching Voltage:
250 V IEC
Utilisation Coefficient:
0.2
Reset Time:
20 ms
Protection Category:
RT I
Electrical Durability:
100000 cycles resistive
China Rohs Regulation:
X
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Sustainable Offer Status:
Green Premium product
Toxic Heavy Metal Free:
Yes
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Mechanical Durability:
10000000 cycles
Pollution Degree:
3
Test Levels:
level A group mounting
Contacts Type And Composition:
2 C/O
Ambient Air Temperature For Operation:
-40-55 °C
[Uc] Control Circuit Voltage:
24 V AC 50/60 Hz
Operating Position:
any position
Contacts Material:
AgNi
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Operating Time:
20 ms
Range Of Product:
Harmony Electromechanical Relays
Rohs Exemption Information:
Yes
Shock Resistance:
10 gnin operation || 30 gnnot operating
Series Name:
Miniature
Shape Of Pin:
flat
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Environmental Disclosure:
ENVPEP2106019EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
