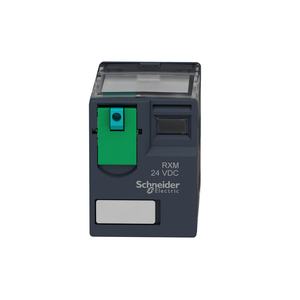

Schneider Electric RXM2AB2ED Miniature Relay Led 2C/O 48Vdc Pack of 10

Schneider Electric RXM2AB2ED Miniature Relay Led 2C/O 48Vdc Pack of 10

Schneider Electric
SKU:
RXM2AB2ED
|
UPC:
3389119403498
Availability:
Contact us to confirm availability and lead times.
$75.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RXM miniature plug-in relay has a coil control voltage of 48V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0
Additional Information
Ambient Air Temperature For Storage:
-40-85 °C
Device Short Name:
RXM
Net Weight:
0.037 kg
[Uc] Control Circuit Voltage:
48 V DC
Average Resistance:
2560 Ohm 20 °C +/- 10 %
Reset Time:
20 ms
Utilisation Coefficient:
0.2
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Operating Time:
20 ms
Rated Operational Voltage Limits:
38.4...52.8 V DC
Shape Of Pin:
flat
Operating Position:
any position
Reach Free Of Svhc:
Yes
Maximum Switching Voltage:
250 V IEC
Control Type:
lockable test button
Range Of Product:
Harmony Electromechanical Relays
Safety Reliability Data:
B10d = 100000
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Cad Overall Depth:
80.35 mm
Electrical Durability:
100000 cycles resistive
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Ambient Air Temperature For Operation:
-40-55 °C
Product Or Component Type:
plug-in relay
Cad Overall Height:
82.8 mm
Pollution Degree:
3
Rohs Exemption Information:
Yes
Test Levels:
level A group mounting
Series Name:
Miniature
Contacts Material:
AgNi
Continuous Output Current:
0.416666666666667
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Sustainable Offer Status:
Green Premium product
Status Led:
with
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Toxic Heavy Metal Free:
Yes
Average Coil Consumption:
0.9 W
Standards:
CSA C22.2 No 14 || IEC 61810-1 || UL 508
Warranty:
18 months
Device Presentation:
complete product
Shock Resistance:
10 gnin operation || 30 gnnot operating
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Drop-Out Voltage Threshold:
>= 0.1 Uc
Circularity Profile:
ENVEOLI2106019EN
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs
Maximum Switching Capacity:
3000 VA/336 W
Contacts Type And Composition:
2 C/O
Mercury Free:
Yes
China Rohs Regulation:
X
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Load Current:
12 A 250 V AC || 12 A 28 V DC
Mechanical Durability:
10000000 cycles
Protection Category:
RT I
Environmental Disclosure:
ENVPEP2106019EN
[Ie] Rated Operational Current:
12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
