Schneider Electric RXM2AB2F7 Miniature Relay Led 2C/O 120Vac Pack of 10
Schneider Electric
$75.60
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

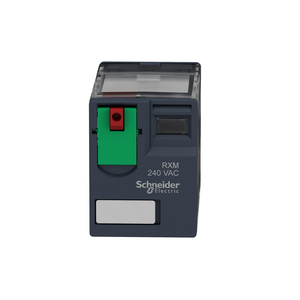

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 120 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
- Net Weight:
- 0.037 kg
- Circularity Profile:
- ENVEOLI2106019EN
- Control Type:
- lockable test button
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Ambient Air Temperature For Storage:
- -40-85 °C
- Shape Of Pin:
- flat
- Average Resistance:
- 4430 Ohm 20 °C +/- 15 %
- China Rohs Regulation:
- X
- Maximum Switching Capacity:
- 3000 VA/336 W
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Maximum Switching Voltage:
- 250 V IEC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Status Led:
- with
- Continuous Output Current:
- 0.416666666666667
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Utilisation Coefficient:
- 0.2
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- [Ie] Rated Operational Current:
- 12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
- Series Name:
- Miniature
- Product Or Component Type:
- plug-in relay
- Contacts Type And Composition:
- 2 C/O
- Mercury Free:
- Yes
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
- Device Short Name:
- RXM
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Cad Overall Depth:
- 78.45 mm
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Protection Category:
- RT I
- Safety Reliability Data:
- B10d = 100000
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Operating Rate:
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Environmental Disclosure:
- ENVPEP2106019EN
- Test Levels:
- level A group mounting
- Load Current:
- 12 A 250 V AC || 12 A 28 V DC
- Contacts Material:
- AgNi
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Operation:
- -40-55 °C
- Device Presentation:
- complete product
- Pollution Degree:
- 3
- Reset Time:
- 20 ms
- Average Consumption:
- 1.2 VA 60 Hz
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Mechanical Durability:
- 10000000 cycles
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Operating Time:
- 20 ms
- Electrical Durability:
- 100000 cycles resistive
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Rated Operational Voltage Limits:
- 96...132 V AC
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Harmony Electromechanical Relays
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Cad Overall Height:
- 79 mm
- Operating Position:
- any position
