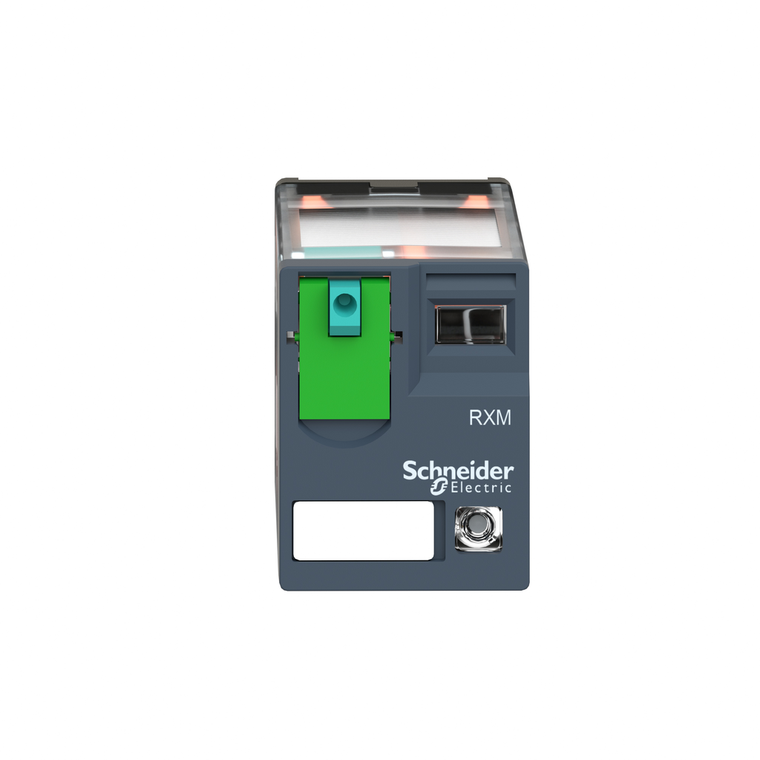

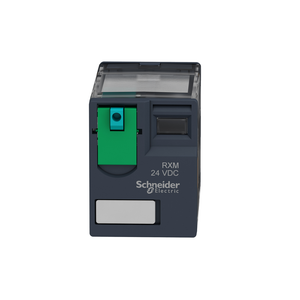

Schneider Electric RXM2AB2FD Miniature Relay Led 2C/O 110Vdc Pack of 10

Schneider Electric RXM2AB2FD Miniature Relay Led 2C/O 110Vdc Pack of 10

Schneider Electric
SKU:
RXM2AB2FD
|
UPC:
3389119403511
$75.60
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 110 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Additional Information
Environmental Disclosure:
ENVPEP2106019EN
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Operating Position:
any position
Rohs Exemption Information:
Yes
Cad Overall Depth:
80.35 mm
Reset Time:
20 ms
Rated Operational Voltage Limits:
88...121 V DC
Contacts Material:
AgNi
Device Short Name:
RXM
Average Coil Consumption:
0.9 W
[Uc] Control Circuit Voltage:
110 V DC
Mechanical Durability:
10000000 cycles
Electrical Durability:
100000 cycles resistive
Series Name:
Miniature
Test Levels:
level A group mounting
Circularity Profile:
ENVEOLI2106019EN
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Product Or Component Type:
plug-in relay
Average Resistance:
13440 Ohm 20 °C +/- 10 %
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Control Type:
lockable test button
Sustainable Offer Status:
Green Premium product
Net Weight:
0.037 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Range Of Product:
Harmony Electromechanical Relays
Status Led:
with
Safety Reliability Data:
B10d = 100000
Toxic Heavy Metal Free:
Yes
Operating Time:
20 ms
Maximum Switching Capacity:
3000 VA/336 W
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs
Mercury Free:
Yes
[Ie] Rated Operational Current:
12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
Maximum Switching Voltage:
250 V IEC
Ambient Air Temperature For Operation:
-40-55 °C
Ambient Air Temperature For Storage:
-40-85 °C
Utilisation Coefficient:
0.2
Cad Overall Height:
82.8 mm
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Pollution Degree:
3
Warranty:
18 months
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Presentation:
complete product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Shape Of Pin:
flat
Standards:
CSA C22.2 No 14 || IEC 61810-1 || UL 508
Reach Free Of Svhc:
Yes
Protection Category:
RT I
Continuous Output Current:
0.416666666666667
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Drop-Out Voltage Threshold:
>= 0.1 Uc
Contacts Type And Composition:
2 C/O
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Shock Resistance:
10 gnin operation || 30 gnnot operating
Load Current:
12 A 250 V AC || 12 A 28 V DC
