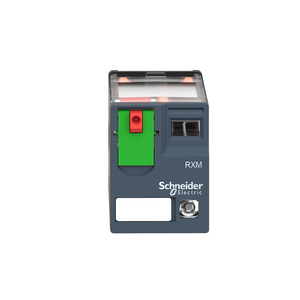

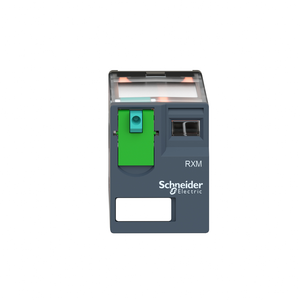

Schneider Electric RXM3AB1F7 Miniature Relay 3C/O 120Vac Pack of 10

Schneider Electric RXM3AB1F7 Miniature Relay 3C/O 120Vac Pack of 10

Schneider Electric
SKU:
RXM3AB1F7
|
UPC:
3389119403580
$69.50
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RXM miniature plug-in relay has a coil control voltage of 120V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and mechanical indicator for contact status." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0
Additional Information
Average Resistance:
4430 Ohm 20 °C +/- 15 %
Control Type:
lockable test button
Average Consumption:
1.2 VA 60 Hz
Continuous Output Current:
6.7 A
Warranty:
18 months
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Status Led:
without
Ambient Air Temperature For Operation:
-40-55 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contacts Material:
AgNi
Protection Category:
RT I
Operating Rate:
<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Maximum Switching Capacity:
2500 VA/280 W
Sustainable Offer Status:
Green Premium product
Device Short Name:
RXM
Rohs Exemption Information:
Yes
Rated Operational Voltage Limits:
96...132 V AC
Mechanical Durability:
10000000 cycles
Operating Time:
20 ms
China Rohs Regulation:
X
Pollution Degree:
2
[Ie] Rated Operational Current:
10 A 28 V DC) NO IEC || 10 A 250 V AC) NO IEC || 5 A 28 V DC) NC IEC || 5 A 250 V AC) NC IEC || 10 A 30 V DC) UL || 10 A 277 V AC) UL
Drop-Out Voltage Threshold:
>= 0.15 Uc
Circularity Profile:
ENVEOLI2106019EN
Environmental Disclosure:
ENVPEP2106019EN
Maximum Switching Voltage:
250 V IEC
Range Of Product:
Harmony Electromechanical Relays
[Uc] Control Circuit Voltage:
120 V AC 50/60 Hz
Device Presentation:
complete product
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs
Product Or Component Type:
plug-in relay
Standards:
UL 508 || IEC 61810-1 || CSA C22.2 No 14
Minimum Switching Capacity:
170 mW 10 mA, 17 V
Series Name:
Miniature
Reach Free Of Svhc:
Yes
Electrical Durability:
100000 cycles resistive
Net Weight:
0.037 kg
Safety Reliability Data:
B10d = 100000
Reset Time:
20 ms
Product Certifications:
UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
Shape Of Pin:
flat
Cad Overall Height:
79 mm
Vibration Resistance:
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
[Ui] Rated Insulation Voltage:
250 V IEC || 300 V CSA || 300 V UL
Load Current:
10 A 250 V AC || 10 A 28 V DC
Operating Position:
any position
Contacts Type And Composition:
3 C/O
Cad Overall Depth:
78.45 mm
Ip Degree Of Protection:
IP40 conforming to IEC 60529
Ambient Air Temperature For Storage:
-40-85 °C
Utilisation Coefficient:
0.2
Dielectric Strength:
1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
Test Levels:
level A group mounting
Average Coil Consumption In Va:
1.2-1.2 60 Hz
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shock Resistance:
10 gnin operation || 30 gnnot operating
